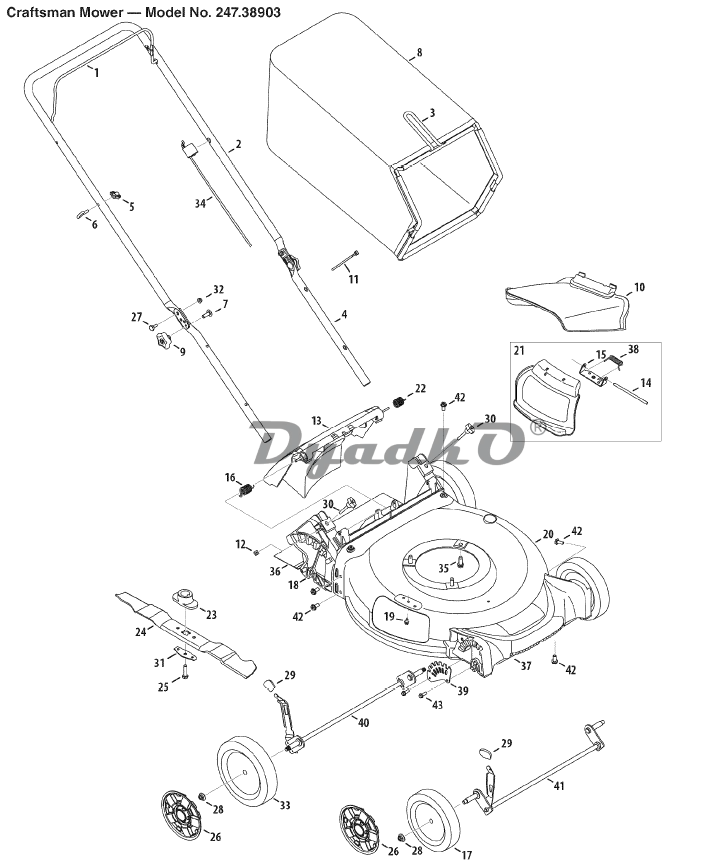

Схема (деталировка) газонокосилки бензиновые CRAFTSMAN 247.389030 Газонокосилка. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Blade Control
2	Upper Handle
3	Grass Catcher Frame
4	Lower Handle
5	Wing Nut
6	Rope Guide
7	Carriage Screw ,5/16-18
8	Grass Bag
9	Hand Knob
10	Side Chute
11	Cable Tie
12	Nut, Sq., 1/4-20
13	Rear Discharge Door Assembly
14	Hinge Pin
15	Chute Deflector Bracket
16	Torsion Spring - RH
17	Wheel, 7x2
18	Rear Baffle
19	Screw, 1/4-20 x .500
20	Deck - 21\"
21	Hinged Mulch Plug Assembly
22	Torsion Spring - LH
23	Blade Adapter
24	Mulching Blade
25	Screw, 3/8-24 x 1.50
26	Hub Cap - Front
26a	Hub Cap - Rear
27	Sldr. Sciew. .375 x .126 x 1/4-20
28	Flange Lock Nut, 3/8-16
29	Adjustment Lever Knob
30	Wing Nut
31	Blade Bell Support
32	Nut, Flange Lock, 1/4-20
33	Wheel, 8x2
34	Control Cable
35	TT Sems Screw, 3/8-16 x 1.0
36	Trail shield
37	Front Cover
38	Torsion Spring
39	Front Height Adjuster Plate
40	Rear Axle Assembly
41	Front Axle Assembly
42	Screw, 5/16-14 x .750
43	Screw, 1/4-15 x .750
