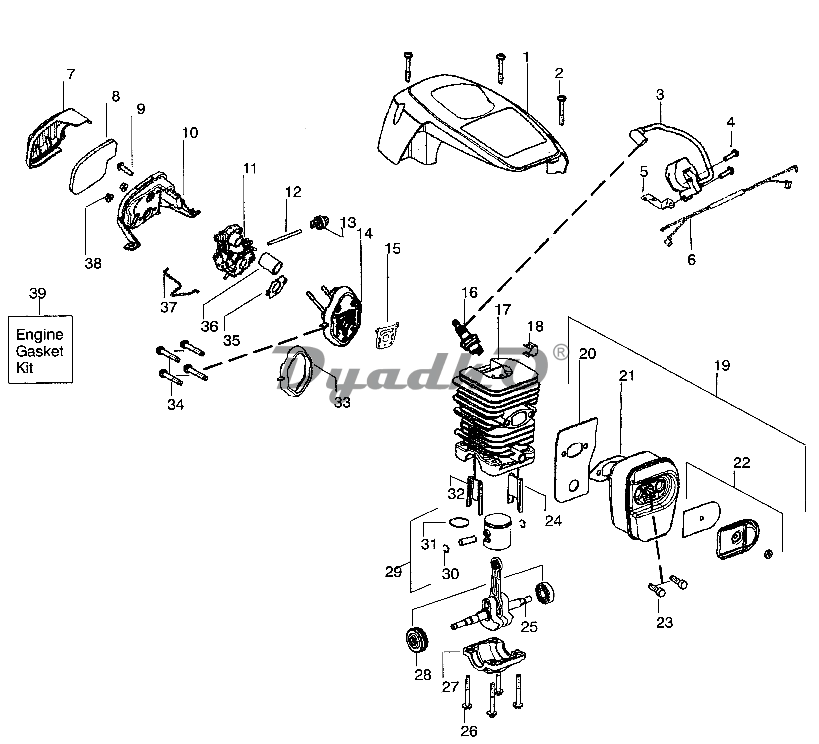

Схема CRAFTSMAN 351700 (358.351700) Двигатель
1.
Shield-Cyl. (Ind. 2)
2.
Screw
3.
Kit - EPS lgn.(lncl. flywheel)
4.
Screw
5.
Strap-Ground
6.
Assy-Wire Harness
7.
Cover-Air Filter
8.
Filter-Air
9.
Screw
10.
Housing-Air Filter
11.
Carburetor -Zama W26B (Incl. 13)
12.
Kit-Fuel Line (Small)
13.
Bulb-Purge “snap-in\"
14.
Kit-Carb. Adapter (Incl. 15,33,36)
15.
Gasket-Cyl. (kit)
16.
Accy—Spark Plug(RCJ—7Y)
17.
Kit-Cylinder (Incl. 24,32)
18.
Clip- High Tension Lead
19.
Kit-Muffler (Incl. 20,21,22,23)
20.
Backplate- Muffler
21.
Gasket-Muffler (kit)
22.
Kit-Spark Arrestor
23.
Bolt-Muffler
24.
Insert-Left (black) Cyl.
25.
Assy - Crankshaft/Rod
26.
Bolt
27.
Cap-Crankcase
28.
Assy - Bearing/Seal
29.
Kit-Piston (Incl. 30,31)
30.
Retainer-Piston pin
31.
Ring-Piston
32.
Insert- Right (gray) Cyl.
33.
Seal-Adaptor (kit)
34.
Screw
35.
Gasket-Carb/Adapter (kit)
36.
Tube-Intake
37.
Wire-Throttle
38.
Nut-Carb.-
39.
Kit-Gasket (Incl. 15,21,33,35)
Не показано:
Manual
Decal-Warning
Assy-Carrying Case
Scabbard - Carrying Case
