10T800 (Type 0002 - 5879)(29.11.2012)

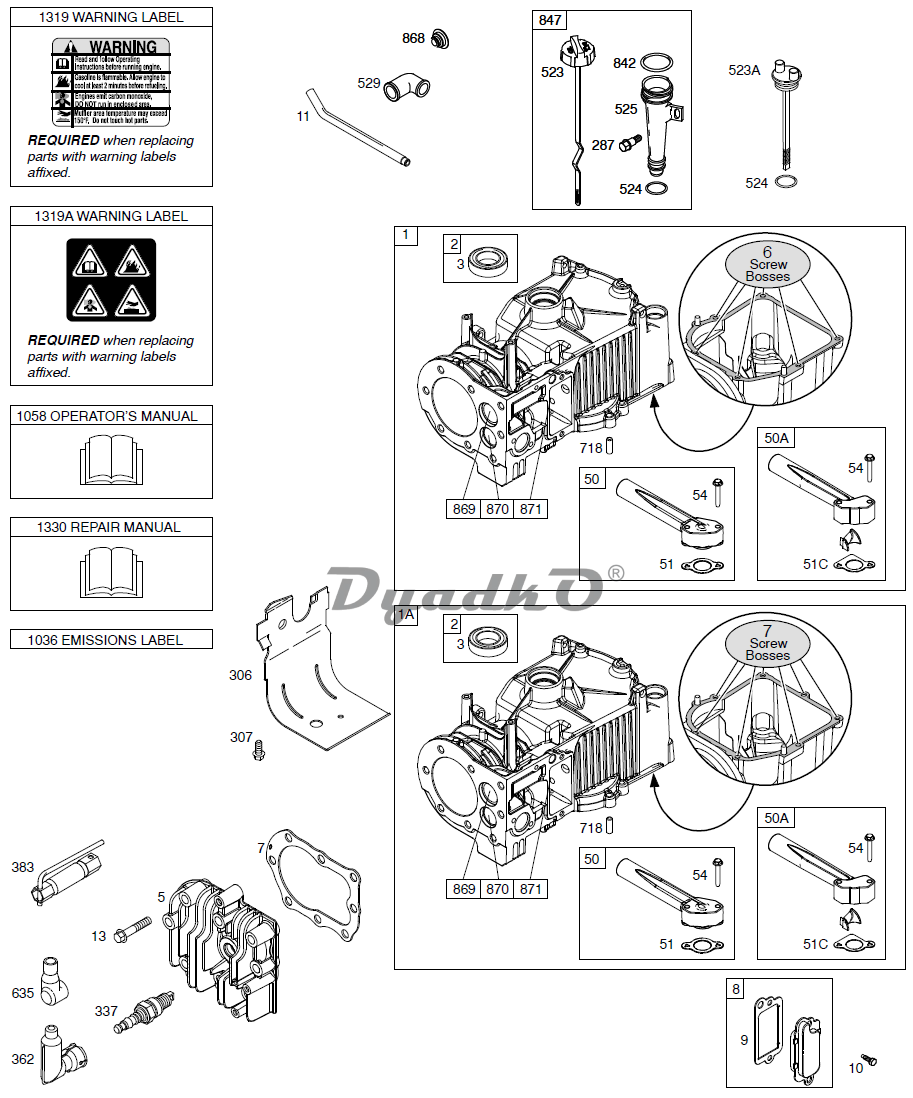

Схема BRIGGS&STRATTON 10T800 (Type 0002 - 5879)(29.11.2012) 01 Cylinder, Cylinder Head, Lubrication, Operator’s Manual, Warning Label
1
Cylinder Assembly (Engines with 6 Sump Screws)
1A
Cylinder Assembly (Engines with 7 Sump Screws)
2
Kit-Bushing/Seal (Magneto Side)
3
Seal-Oil (Magneto Side)
5
Head-Cylinder
7
Gasket-Cylinder Head
8
Breather Assembly
9
Gasket-Breather
10
Screw (Breather Assembly)
11
Tube-Breather
13
Screw (Cylinder Head)
50
Manifold-Intake
50A
Manifold-Intake
51
Gasket-Intake
51C
Gasket-Intake
54
Screw (Intake Manifold)
287
Screw (Dipstick Tube)
306
Shield-Cylinder (Для двигателей произведённых до 11.10.2006 (06101100))
307
Screw (Cylinder Shield) (Для двигателей произведённых до 11.10.2006 (06101100))
337
Plug-Spark
337
Plug-Spark (Для двигателей указаных Типов: 0004, 0005, 0015, 0016, 0018, 0111, 0112, 0114, 0118, 0120, 0122, 0123, 0124, 0125, 0126, 0127, 0130, 0131, 0132, 0137, 0138, 0139, 0142, 0143, 0153, 0154, 0157, 0173, 0192, 0196, 0197, 0204, 0207, 0208, 0248, 0249, 0272, 4015, 4016, 4130, 4132, 4153, 4154, 4157)
362
Shield-Spark Plug (Для двигателей указаных Типов: 0002, 0110, 0116, 0119, 0121, 0128, 0129, 0134, 0135, 0136, 0140, 0145, 0147, 0149, 0151, 0152, 0155, 0156, 0158, 0159, 0161, 0164, 0165, 0169, 0170, 0172, 0175, 0176, 0177, 0180, 0185, 0186, 0188, 0190, 0191, 0198, 0201, 0202, 0203, 0204, 0205, 0206, 0207, 0211, 0257, 0483, 0823, 0878, 1130, 1132, 1162, 1165, 1166, 1228, 1327, 1332, 1333, 1341, 1397, 1450, 1570, 1585, 3327, 4128, 4135, 4136, 4145, 4155, 4158, 4161, 4164, 4165, 4175, 4180, 4198, 4228, 4450, 4570, 4585)
383
Wrench-Spark Plug
523
Dipstick
523A
Dipstick (Для двигателей указаных Типов: 0112)
524
Seal-Dipstick Tube
525
Tube-Dipstick
529
Grommet
635
Boot-Spark Plug
718
Pin-Locating (Cylinder)
842
Seal-O Ring (Dipstick Tube)
847
Dipstick/Tube Assembly
868
Seal-Valve
869
Seat-Valve (Intake)
870
Seat-Valve (Exhaust)
871
Bushing-Valve Guide (Exhaust Valve)
871
Bushing-Valve Guide (Intake Valve)
1036
Label-Emissions (Available From A Briggs & Stratton Authorized Dealer)
1058
Operator’s Manual
1319
Label-Warning
1319A
Label-Warning
1330
Repair Manual
