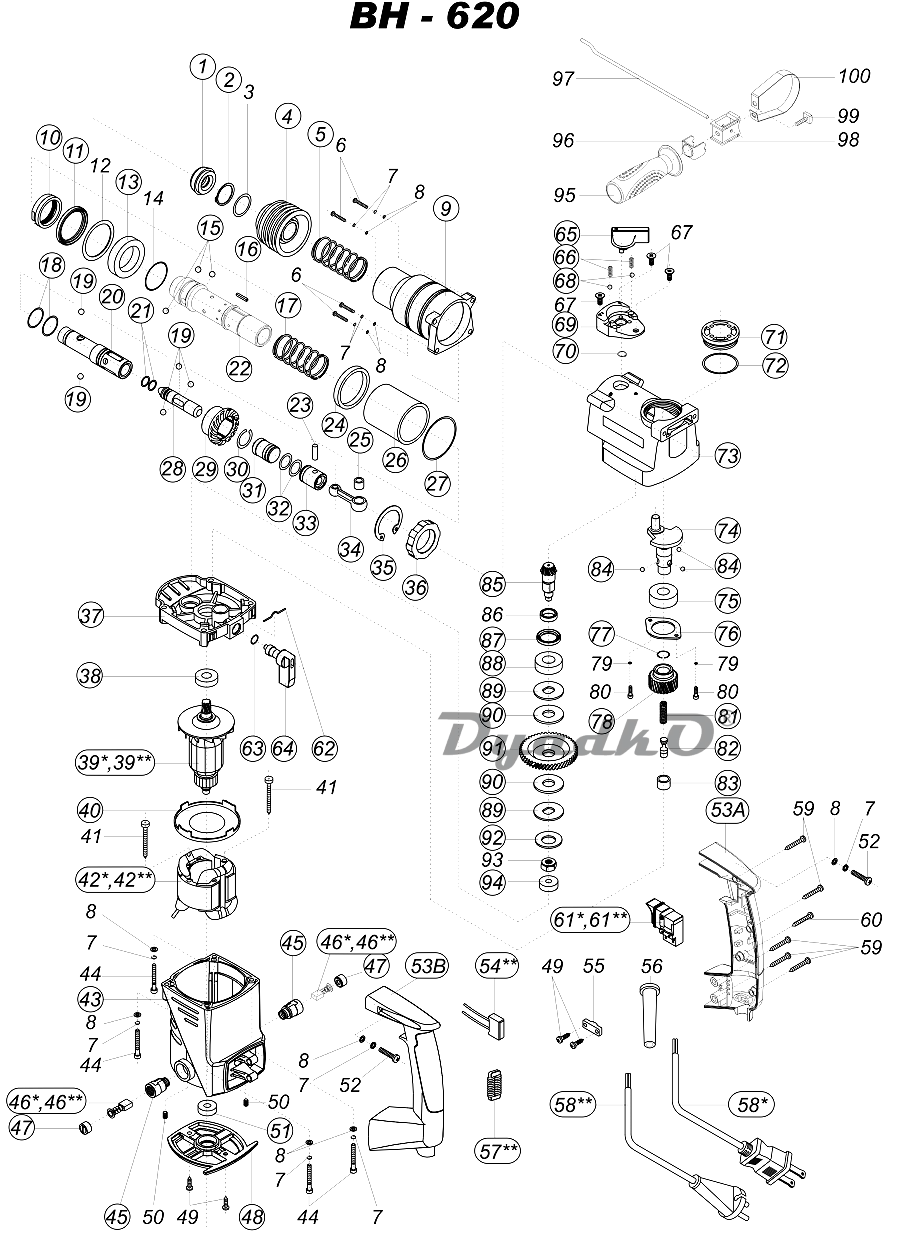

Схема DWT BH-620

1 Front cap
2 Snap ring Ø19
3 Washer Ø20
4 Protection sleeve
5 Spring Ø32x65
6 Screw M5x25 (4)
7 Spring washer Ø5 (10)
8 Washer Ø5 (10)
9 Cylinder housing
10 Cylinder cap
11 Oil seal Ø42
12 Washer Ø45x55
14 O ring Ø35
15 Steel ball Ø7.94 (3)
16 Flat key 3x18 (2)
17 Spring Ø38x56
18 O ring Ø24x2.5 (2)
19 Steel ball Ø7.14 (5)
20 Guard ring sleeve
21 O ring Ø15x2
22 Cylinder
23 Piston pin
24 Rubber ring Ø45xØ55
26 Plastic bush Ø55x48
27 O ring Ø60.5x2.5
28 Second striker
29 Cone gear
30 Snap ring Ø28
31 Striker
32 O ring Ø24x3.5 (2)
33 Piston
34 Connecting rod
35 Circlip for hole Ø47
36 Oil bearing
37 Gear housing
38 Ball bearing 6001.RS
39** Armature 230V
40 Guide wind circle
41 Screw ST4x50 (2)
42** Stator 230V
43 Housing
44 Screw M5x50 (4)
45 Brush holder (2)
46** Carbon brush 230 V (2)
47 Brush cap (2)
48 Bottom cap
49 Screw ST4x16 (4)
50 Screw M4x6 (2)
51 Ball bearing 608.RS
52 Screw M5x25 (2)
53A Handle A
53B Handle B
54** Condenser 0.22 μF 230V
55 Cord clip
56 Depth rod
57** Condenser 35 μF 450V
58** Cord 230V
59 Screw ST4x25 (5)
60 Screw ST4x20
61** Switch 230V
62 Steel clamp
63 O ring Ø12
64 Switch grip
65 Switch knob
66 Spring Ø5x12 (2)
67 Screw M4x10 (3)
68 Steel ball Ø5 (2)
69 Fixation bearer
70 Circlip Ø12
71 Oil seal cap
72 O ring Ø42x2
73 Crank housing
74 Crank shaft
75 Ball bearing 6202.RS
76 Bearing cover
77 Snap ring Ø15
78 First gear
79 Spring washer Ø4 (2)
80 Screw M4x16 (2)
81 Spring Ø8x30
82 Lifting pole
83 Needle bearing HK1210
84 Steel ball Ø5.5 (3)
85 Third shaft gear
86 Oil seal indent
87 Oil seal Ø20x28
88 Ball bearing 6002.RS
89 Pull board (2)
90 Clutch facing (2)
91 Second gear
92 Dish form spring
93 special_nut
94 Ball bearing 627.Z
95 Side handle
96 Depth rod clamp
97 Depth rod
