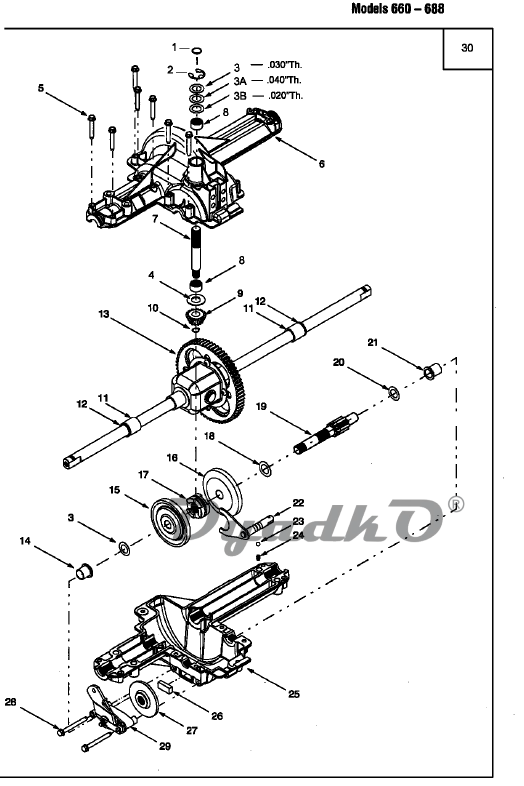

Схема (деталировка) тракторы садовые и райдеры MTD B 155 (13AA688G678) (2004г) Gearbox. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	1 Circlip FINISH:ZINC PHOSPHATE
2	1 RING:E-TYPE:.750 FINISH:PHOS & OIL/916-0231
3	1 WASH:SHIM:.625x1.000x.030:HD ZINC SIEHE ZG.
3A	1 WASHER:FLAT:.634x1.00x.04:HT FINISH:701-01001 936-0337
3B	1 WASHER:SHIM:.630x1.000x.020:HD FINISH:SIEHE ZG.
4	1 WASH:THRST:.635 X 1.26 X .06 FINISH:SIEHE ZG.
5	13 SCR:TT:1/4-20:1.625:HXINDWSH FINISH:MTD SPEC-701-01002
6	1 UPPER HOUSING PART 919-04017 RB 918-04168
7	1 INPUT SHAFT 711-1109
8	2 BEARING-NEEDLE .625X.813X.495 741-0335 / 941-0335
9	1 PINION INPUT 14T FINISH:HITZEBEHANDELT
10	1 RETAINING:RING:EXT .437 FINISH:PHOSPATIERT 916-0108
11	2 BRG:SLEEVE:.75 x 1.00 x 1.00 741-0340 / 941-0340
12	2 OIL SEAL:.75x1.00x.125 .75x1.00x.125
13	1 DIFFERENTIAL ASM 618-04041
14	1 FLANGE BEARING FINISH:SIEHE ZG. 941-0336
15	1 PINION 42 T., SM. BORE HOLE 717-1362 / 917-1362 *
16	1 PINION 42 T., BIG BORE HOLE 717-1363/917-1363 *
17	1 HINGE PIN 718-0228
18	1 WASH:FLAT:.70X1.125X.031 736-0519/936-0519
19	1 DRIVE SHAFT 711-04053 / 911-04053
20	1 WASHER:SHIM:.632x1.000x.025:HD FINISH:SIEHE ZG. 936-0495
21	1 FLANGE BEARING 941-0337
22	1 FORK ASSY-SHIFT 611-0011 / 911-0011
23	1 BALL:DETNT:.250 DIA 741-0862
24	1 COMPRESSION SPRING 225X.50\" 732-0863 / 932-0863
25	1 719-04018 / 919-04018 719-04018 / 919-04018
26	1 BRAKE PAD FINISH: 917-0678
27	1 BRAKE DISC FINISH:ÖL UND FETTFREI
28	2 SCREW:TT:1/4-20:2.375:HXINDWSH FINISH:MTD SPEC-701-01002
29	1 BRAKE ASM:YOKE:LH 661-0001 / 961-0001
30	1 TRANSMISSION SINGLE SPEED 618-04034 / 918-04034
