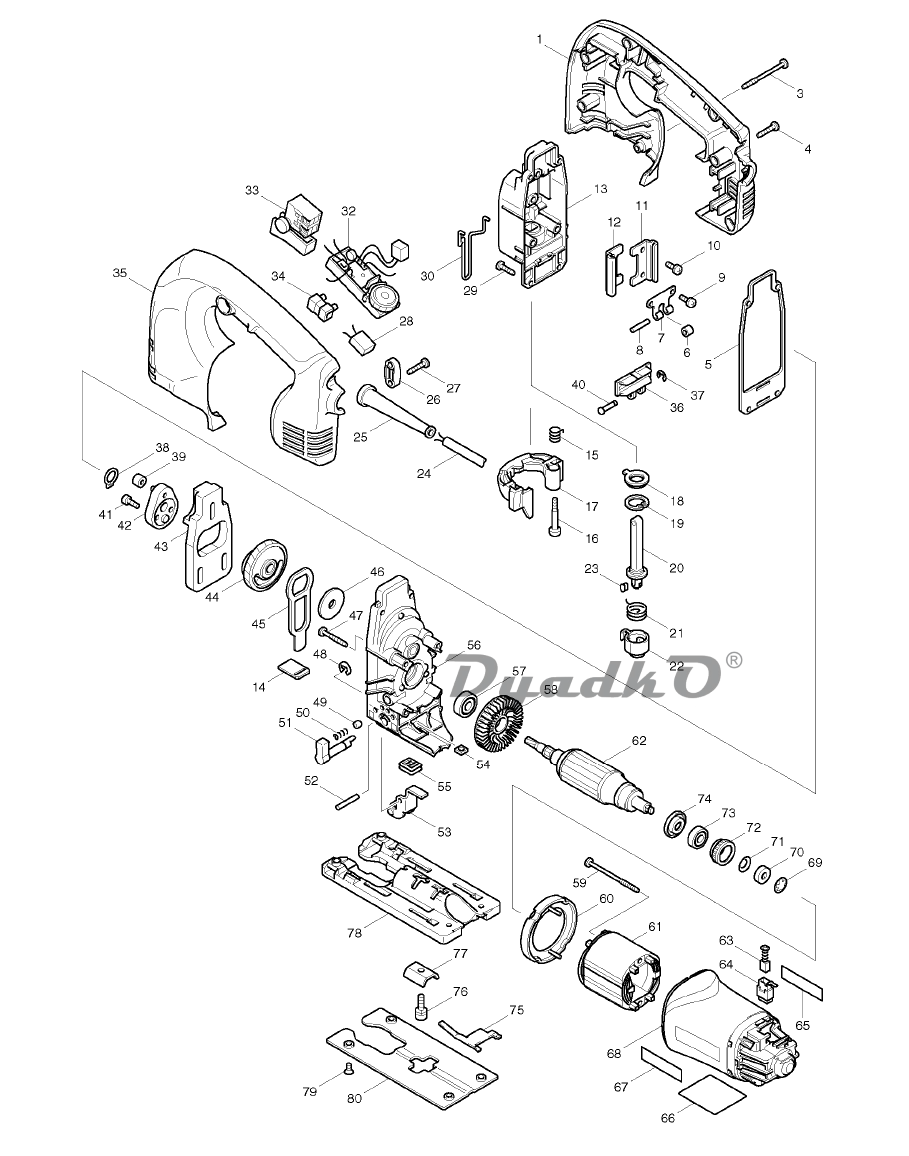

Схема MAKITA 4340 CT

1 HANDLE SET 4340CT/4341CT/SMA
3 PT SCREW M4X50 HR1830/SMA400
4 *PT SCREW 4X18 10PK KP0810C
5 PACKING 4340CT/4341CT/SMA400
6 PLANE BEARING 4 6913DW/4340CT
7 LEAF SPRING 4340/SMA400
8 PIN 2 4340/4323/SMA400
9 *PAN HEAD SCREW M4X10 10PK
10 *PAN HEAD SCREW M4X10 10PK
11 LINEAR GUIDE 4340/SMA400
12 LINEAR GUIDE 4340/SMA400
13 GEAR HOUSING COVER COMP 4340
14 SEAL PLATE 4340/50/SMA400
15 TORSION SPRING 6 4340/4350 SER
16 *SHOULDER SCREW M4 3901 5PK
17 TOOL OPENER 4340/SMA400
18 DUST COVER 4340/SMA400
19 *RETAINING RING-18 5PK
20 ROD ASSY 4340/50/SMA400
21 TORSION SPRING 15 4340/SMA400
22 BLADE HOLDER 4340/SMA400
23 PUSH PIN 4340/SMA400
24 POWER SUPPLY CORD 1.0-2-2.5
24 LEAD WIRE HP1641/TD0101F/KP081
25 CORD GUARD 10 TD0101F/2450
26 STRAIN RELIEF BO5041/KP0810
27 *PT SCREW 4X18 10PK KP0810C
28 CAPACITOR 4304
29 *CT SCREW M4X16 10PK
30 SAFETY WIRE 4340/SMA400
32 CONTROLLER 110V 4350CT/SMA400
32 CONTROLLER 240V 4350CT/SMA400
33 SWITCH SGEL115CDY-8
34 TERMINAL BLOCK UC3530A/KP0800
35 HANDLE SET 4340CT/4341CT/SMA
36 SLIDER 4340/SMA400
37 *EXT E-RING JIS JE-3 10PK
38 *EXT DIN CIRCLIP-8 10PK
39 NEEDLE BEARING 407 43SB/JG1600
40 PIN 4 4340/SMA400
41 HEX BOLT M4X12 4340/SMA400
42 CRANK COMP 4340/SMA400
43 BALANCE PLATE 4340/SMA400
44 GEAR COMP 4340/SMA400
45 PUSH PLATE 4340/SMA400
46 *LARGE THIN BLUE WSHER 5PK
47 *PT SCREW 4X30 10PK
48 *EXT E-RING JIS JE-5 10PK
49 CAP 5 4340/SMA400
50 \'*COMPRESSION SPRING 3 10PK
51 LEVER 17 4340/SMA400
52 PIN 4 4340/SMA400
53 RETAINER COMP 4340/SMA400
54 SQUARE NUT 4340/SMA400
55 DUST SEAL 4340/SMA400
56 GEAR HOUSING CO 4340/SMA400
57 BALL BEARING 608DDW GA5020
58 FAN 52 6904VH/HP2050/51/4340
59 *PT SCREW 4X60 TRILBULAR 5PK
60 BAFFLE PLATE 4340/SMA400
61 FIELD ASSY 110V 4340/SMA400
61 FIELD ASSY 240V 4340/SMA400
62 ARMATURE ASSY 110V 4340/SMA400
62 ARMATURE ASSY 240V 4340/SMA400
63 CARBON BRUSH CB-419 SET HP1641
64 BRUSH HOLDER UH45/55/5580/6570
65 MAKITA LABEL 500 4305/HR160DW
66 \'NAME PLATE 4340CT
67 MAKITA LABEL 500 4305/HR160DW
68 MOTOR HOUSING 4340CT/FCT
69 SELF LOCK 6 4340CT/3707FC
70 MAGNET SLEEVE GD0800C/810C/BO6
71 WAVE WASHER BO6040/9564&65CV
72 RUBBER RING 19 4305/T/3707/HP2
73 BALL BEARING HP1631/607LLB/430
74 INSULATION WASHER GA4534/5034
75 LEAF SPRING 4340CT/SMA400
76 HEX SOCKET HD BOLT M5X18 EBH25
77 CRANK PLATE 4340/SMA400
78 BASE 4340/SMA400
79 *COUNTERSUNK SCREW M4X8 10PK
80 BASE PLATE 4340/SMA400
_ Пластина накладная на подошву (пластик)
