DP 4003

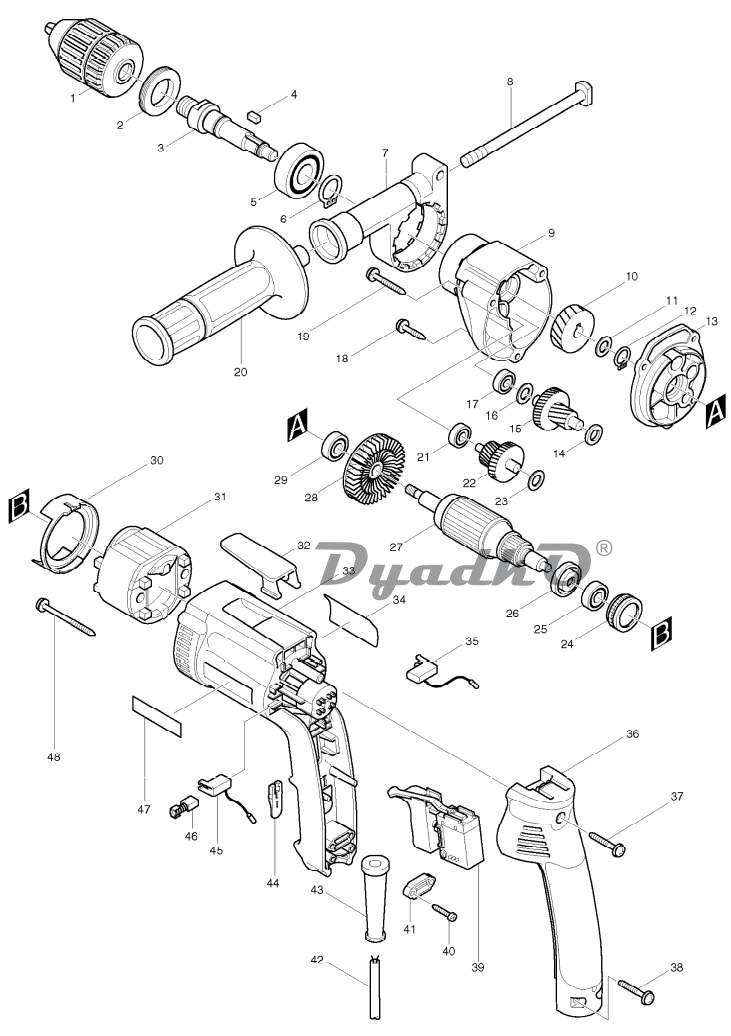

Схема MAKITA DP 4003
1
KEYLESS DRILL CHUCK
2
BEARING RETAINER 22-36
3
SPINDLE
4
KEY 4
5
BALL BEARING 6202LLB
6
RETAINING RING S-15
7
GRIP BASE
8
BOLT M8X195
9
GEAR HOUSING
10
HELICAL GEAR 26
11
FLAT WASHER 11
12
RETAINING RING S-11
13
GEAR HOUSING COVER COMPLETE
14
FLAT WASHER 6
15
GEAR COMPLETE 7-36
16
FLAT WASHER 7
17
BALL BEARING 607LLB
18
TAPPING SCREW 4X30
19
TAPPING SCREW 4X45
20
GRIP 36 COMPLETE
21
BALL BEARING 606ZZ
22
GEAR COMPLETE 16-34
23
FLAT WASHER 6
24
RUBBER RING 19
25
BALL BEARING 607LLB
26
INSULATION WASHER
27
ARMATURE ASS\\\'Y 220-240V INC. 25,26,28,29
28
FAN 55
29
BALL BEARING 608LLB
30
BAFFLE PLATE
31
FIELD 220-240V
32
HOOK
33
MOTOR HOUSING SET INC. 47
34
NAME PLATE DP4003
35
BRUSH HOLDER
36
HANDLE COVER COMPLETE
37
TAPPING SCREW 4X25
38
TAPPING SCREW 4X25
39
SWITCH C3MA-2L-L
40
TAPPING SCREW 4X18
41
CORD CLAMP
42
POWER SUPPLY CORD 1.0-2-2.5
43
CORD GUARD 8
44
SLIDE LEVER
45
BRUSH HOLDER
46
CARBON BRUSH CB-419
47
MAKITA LABEL
48
TAPPING SCREW 4X65
49
GASKET
B01
GRIP 36 ASS\\\'Y INC. 7,8,20
E02
NOISE SUPPRESSOR
E03
LINE COIL
