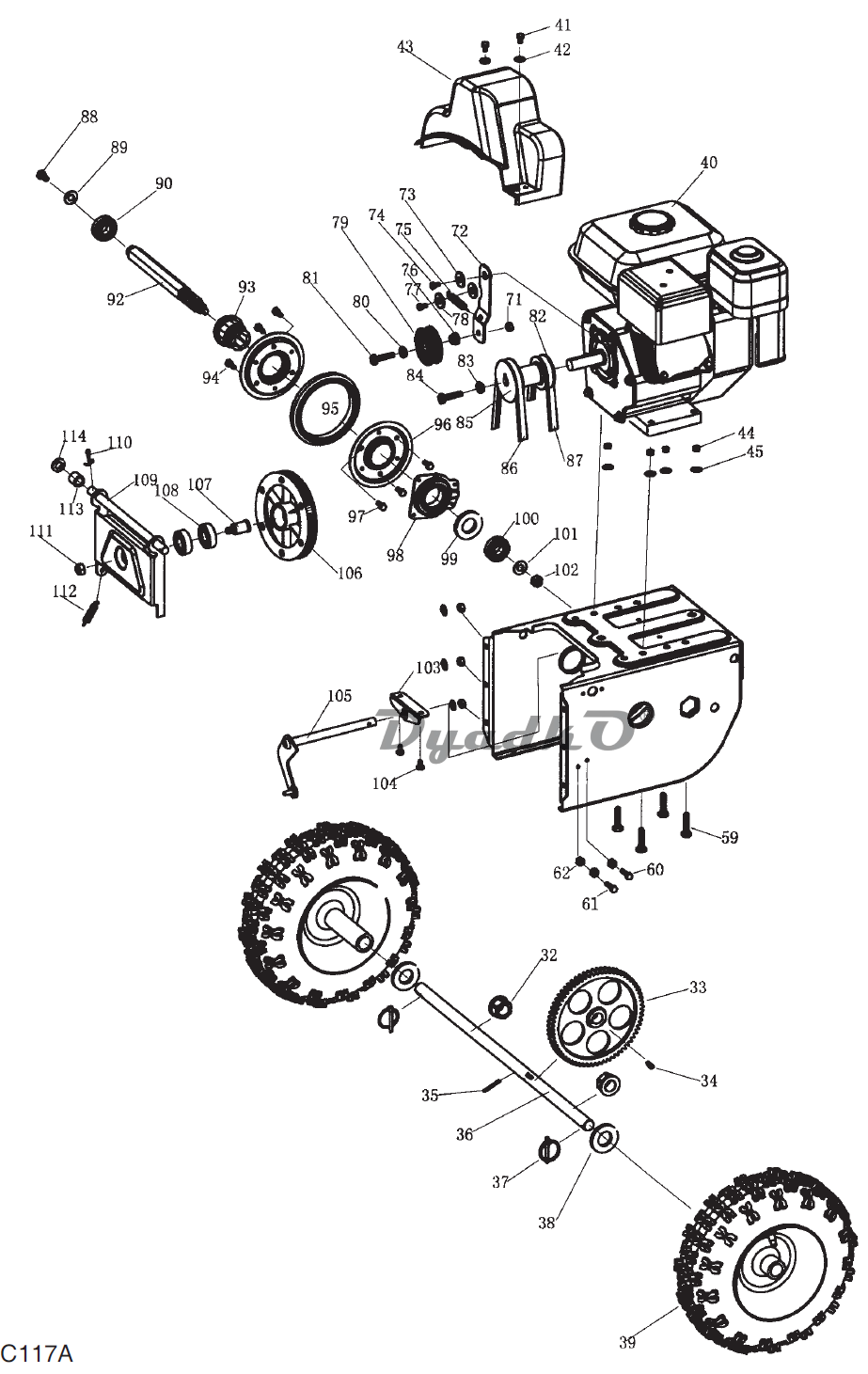

| 32 | Wheel shaft bushing |
| 33 | Gear |
| 34 | Key |
| 35 | Locating pin |
| 36 | Wheel shaft |
| 37 | Spring pin |
| 38 | Flat washer |
| 39 | Wheel assy |
| 40 | Engine assy |
| 41 | Screw |
| 42 | Washer |
| 43 | Belt cover |
| 44 | Lock nut |
| 45 | Flat washer |
| 59 | Screw |
| 60 | Screw |
| 61 | Screw |
| 62 | Nut |
| 71 | Lock nut |
| 72 | Tension arm |
| 73 | Tension washer |
| 74 | Screw |
| 75 | Spring |
| 76 | Washer |
| 77 | Screw |
| 78 | Flat washer |
| 79 | Tension pulley |
| 80 | Washer |
| 81 | Screw |
| 82 | Belt pulley |
| 83 | Plain cushion |
| 84 | Screw |
| 85 | Belt pulley |
| 86 | Belt |
| 87 | Belt |
| 88 | Screw |
| 89 | Washer |
| 90 | Bearing |
| 92 | Hex shaft |
| 93 | Hub |
| 94 | Screw |
| 95 | Friction ring |
| 96 | Friction wheel |
| 97 | Screw |
| 98 | Gear selector hub |
| 99 | Lock ring |
| 100 | Bearing |
| 101 | Flat washer |
| 102 | Lock nut |
| 103 | Bracket |
| 104 | Screw |
| 105 | Gear lever |
| 106 | Drive pulley |
| 107 | Shaft |
| 108 | Bearing |
| 109 | Bracket- drive pulley |
| 110 | Cotter pin |
| 111 | Lock nut |
| 112 | Spring |
| 113 | Collar |
| 114 | Washer |
