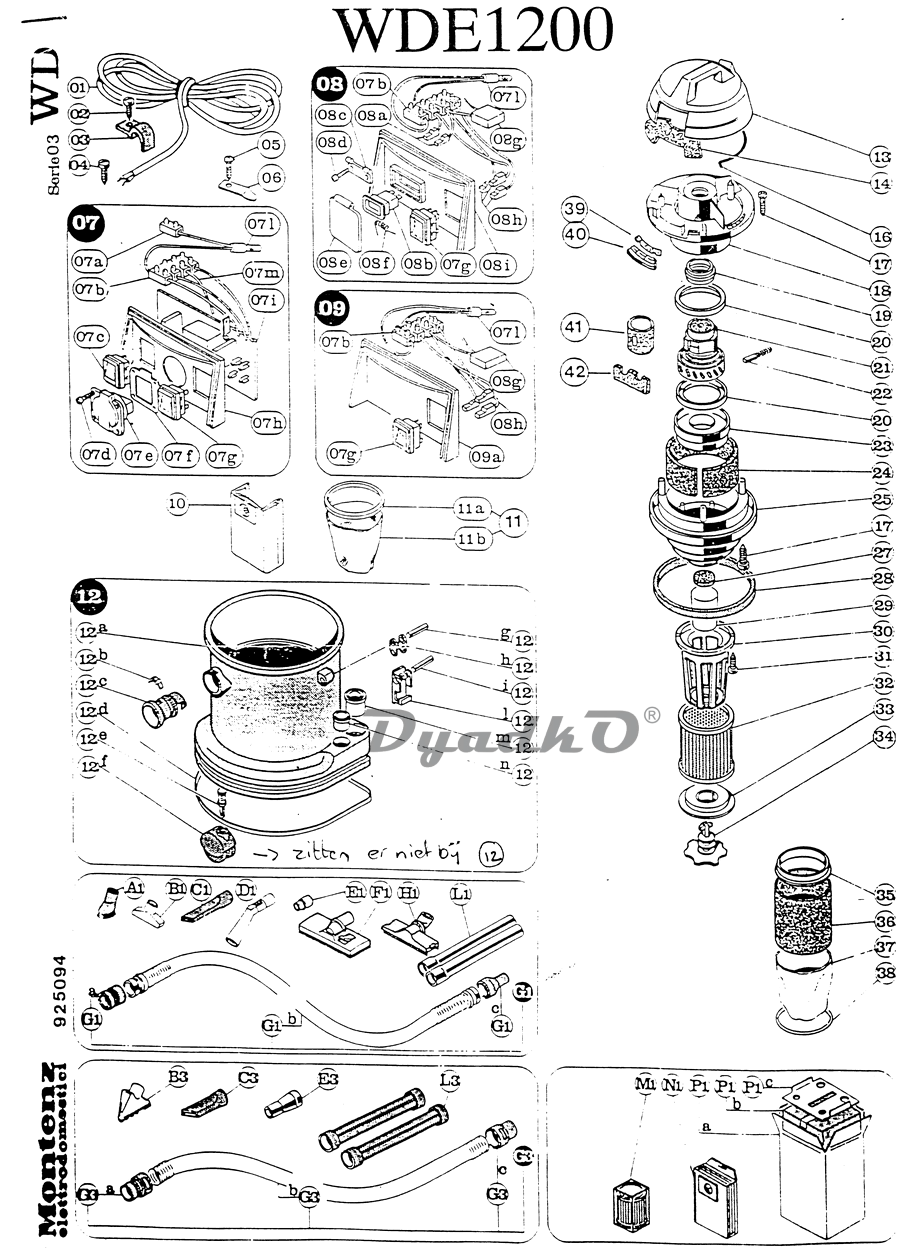

Схема HITACHI WDE1200

1 CORD 8M 3 X 1,5 H05VV-F
2 SCREW 4,8X19 DIN 7981
3 CORD HOLDER
7 AUTOM. SWITCH SET
07b CONNECTOR BLOCK PA44/3
07c SWITCH M/A WD
07e PLUGBOX 2P+T
07f PLUGBOX PAKKING
07g SWITCH
07h PLUGBOX HOLDER
07i PRINTBOARD
07m INTERNAL WIRE
10 PAPER DUST BAG (1 PC) (OPTIONAL)
11 DUSTFILTERBAG (NYLON) (OPTIONAL)
11 DUST FILTERBAG (TEXTILE) (OPTIONAL)
12 HOUSING
12b KNOP
12c HOSE CONNECTOR
12d BUMPER (GRAY)
12f TURNWHEEL + WHEELPIN
12g HINGE PIN
12h HINGEPIN HOLDER
12i HINGE PIN
12l FASTENCLIP
12m HOLDER D.58
12n HOLDER D.36
13 GRIPCOVER
14 SOUND ISOLATION (3PCS)
16 PAKKING
17 SCREW 3,5X19 DIN7981
18 AIRCAP
19 RING
20 RING
21 MOTOR 220 VOLT
22 CARBON BRUSH (1 PCS)
23 DISTANCE HOLDER
24 MOTORISOLATION
25 MOTOR HOUSING
27 MOTORFILTER
28 RING
29 VLOTTER
30 VLOTTERHOLDER
31 SCREW 3,5X16 DIN 7983
32 CARTRIDGE FILTER 15 MICRON
32 HEPA CARTRIDGE FILTER 0,3 MICRON (OPTIONAL)
33 FILTERSUPPORT (BLACK)
34 FILTERKNOP
M1 HEPA CARTRIDGE FILTER 0,3 MICRON
STANDARD ACCESSOIRIES
A1 FURNETURE BRUSH
B1 VACUUM MOUTH D.36
C1 VACUUM MOUTH D.36
D1 GRIP WITH AIR ADJUSTING
E1 REDUCER 36/32/25MM
E3 HINGE PIECE 58/36MM
F1 VACUUM MOUTH (WIDE)
G1 VACUUMHOSESET COMPLETE D.36 (2 m) (OPTIONAL)
M1 CARTRIDGE FILTER 15 MICRON
OPTIONAL ACCESSOIRIES
B3 VACUUM MOUTH FOR LEAVES D.58
C3 VACUUM MOUTH D.58
G2 VACUUMHOSESET COMPLETE D.36 5M
G3 VACUUM HOSE COMPLETE D.58 1,50M
L3 SUCTION TUBE D.58 (1 PC)
H1 VACCUM MOUTH FOR FLUID
H2 RUBBER STRIP FOR 710058(1 PC)
L1 SUCTION HOSE D.36 (1 PC)
** PLASTIC RING FOR HOSE CONNECTION
** BASKET WITH STRAP
** CONNECTOR PIECE (DUO)
** O-RING FOR PRINT ASS\'Y
G1a CONNECTOR PIECE
G1b VACUUM HOSE D.36 1,70 M
G1c CONNECTOR PIECE
