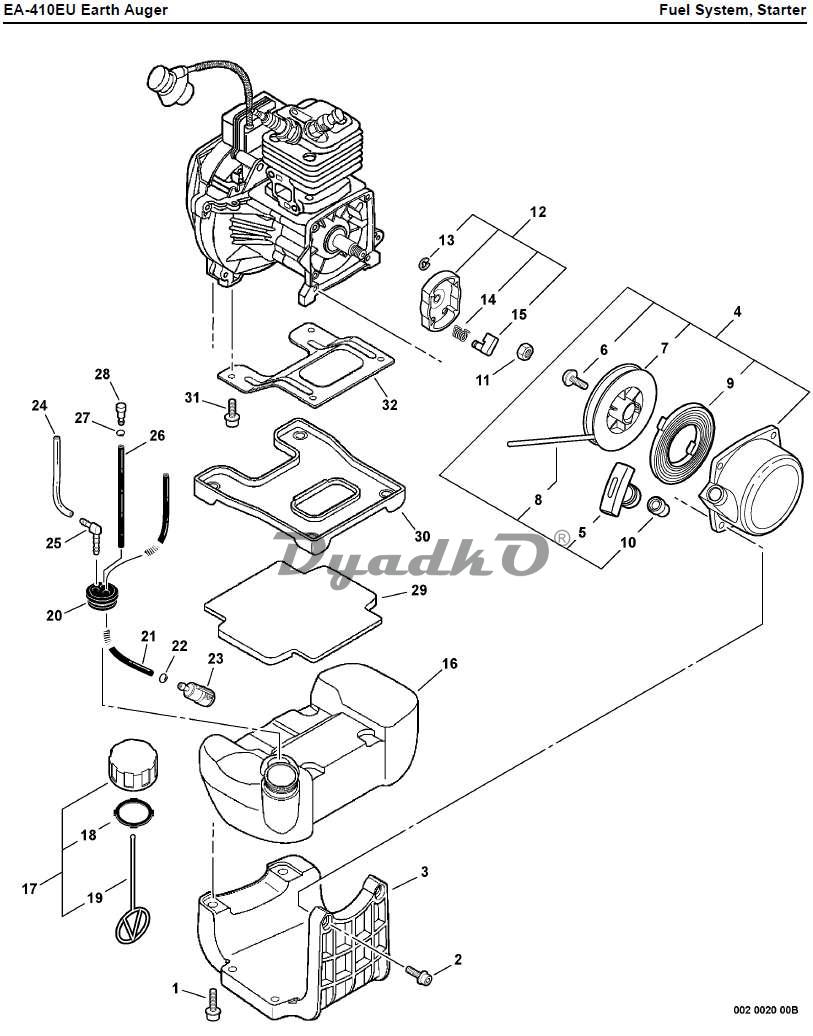

| 1 | SCREW 5X20 |
| 2 | SCREW 5X25 |
| 3 | BRACKET, FUEL TANK |
| 4 | STARTER ASY |
| 5 | GRIP, STARTER |
| 6 | SCREW |
| 7 | SPOOL, STARTER ROPE |
| 8 | ROPE, STARTER - 3.5X 1000mm |
| 9 | SPRING, REWIND |
| 10 | GUIDE, ROPE |
| 11 | NUT 8 |
| 12 | PAWL ASY |
| 13 | E-RING |
| 14 | SPRING, RETURN |
| 15 | PAWL, STARTER |
| 16 | TANK, FUEL |
| 17 | CAP ASY |
| 18 | GASKET, CAP |
| 19 | CONNECTOR, CAP |
| 20 | GROMMET, FUEL |
| 21 | PIPE, FUEL - 3X6X180mm |
| 22 | CLIP |
| 23 | FILTER, FUEL |
| 24 | PIPE, RETURN - 3X6X60mm |
| 25 | CONNECTOR |
| 26 | PIPE, VENT - 3X6X120mm |
| 27 | CLIP |
| 28 | VENT ASY |
| 29 | CUSHION, FUEL TANK |
| 30 | SEAT, FUEL TANK |
| 31 | SCREW 5X12 |
| 32 | BRACKET, FUEL TANK |
