6 ACE (31A-6ACE700) 2007г.

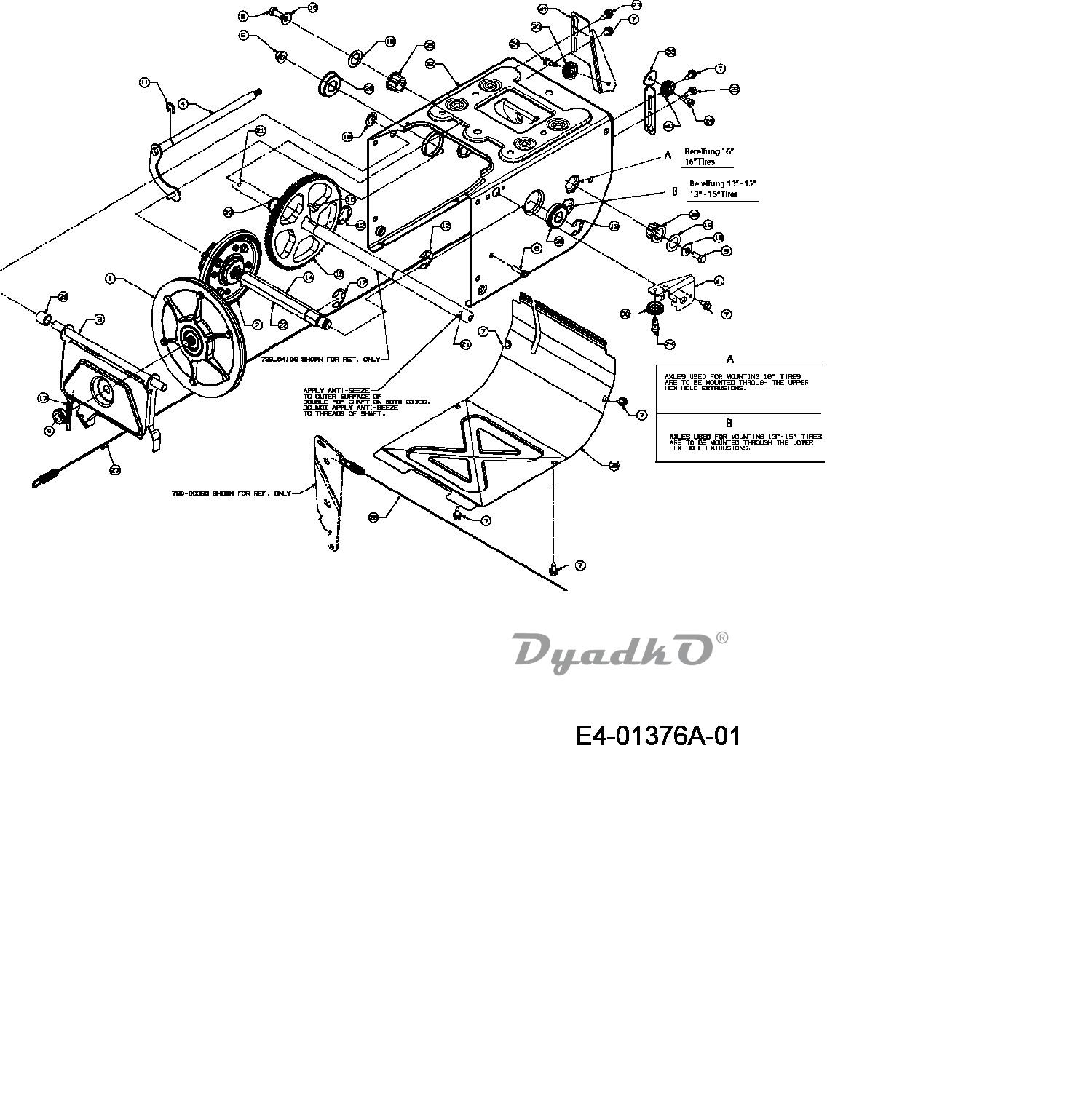

Схема MTD 6 ACE (31A-6ACE700) 2007г. Drive system
1
DISC-ASSY FRICTION
2
WHEEL-FRICTION
3
BRKTASM: SUPTFRCTN WHL BLACK
4
SHIFT ASSY, ROD
5
HHCS:5/16-24:.750:GR5:LOCK
6
SCR:TT:1/4-20:1.000:HXINDWSH
7
SCR:TT:1/4-20 x.625:HXINDWSH:C
8
N UT: FLGLK: 3/8-16:GRF: NYLO N
9
NUT-HEX JAM LOCK
10
KEY-HI-PRO
11
E-RING:.500 DIA SHAFT
12
Circlip
13
RETAINING RING
14
AXLE
15
GEAR:80 TOOTH
16
CAP-PUSH
17
SPRING, GOVERNOR
18
BELL WASH .340 x .872 x.060
19
WASHER-FL
20
WASHER, FLAT
21
GREASE PLASTILUBE 1
22
нет описания
23
SCREW
24
SCR: SH LDR:.340x.355xC: 1 /4-28
25
BEARING-FLANGE
26
BRG:BALL:17x40x12:6203:DS
27
DRIVE CABLE
28
DRIVE CABLE
29
SPACER
30
cable idler wheel
31
BRKT-AUGER CABLE
32
FRAME:600:WHEEL PAINT
33
BRACKETGUIDE CABLE BLACK
34
BRKT:GDE:CBL:CLU:DRIVE
35
COVER:FRAME 500 S/T BL
