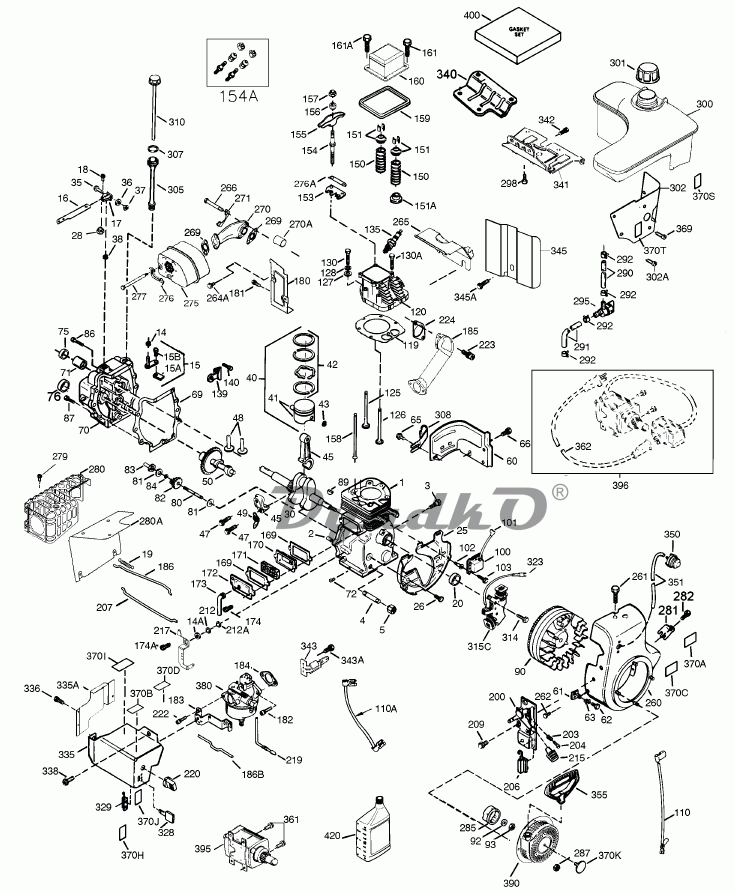

1 |
Cylinder (Incl. 2, 20) (3-1/8 Bore) |
|
2 |
Dowel Pin |
|
3 |
Screw, 1/4-20 x 1/2\" (Upper Mounting Screws for 120-Volt Electric Starter Motor) |
|
5 |
Extension Cap, 1/4-18 NPT |
|
14 |
Flat Washer |
|
14A |
Washer |
|
15 |
Governor Rod (Incl. 15A & 15B) |
|
15A |
Governor Yoke |
|
15B |
Screw, 6-40 x 5/16\" |
|
16 |
Governor Lever Ass\'y. (Incl. 212A) |
|
17 |
Governor Lever Clamp |
|
18 |
Screw, T-15, 8-32 x 7/16\" |
|
19 |
Extension Spring |
|
20 |
Oil Seal |
|
25 |
Blower Housing Baffle |
|
26 |
Screw 1/4-20 x 19/32\" |
|
28 |
Lock Nut, 8-32 |
|
30 |
Crankshaft |
|
35 |
Screw, 10-32 x 3/4\" |
|
36 |
Lock Washer #8 |
|
37 |
Lock Nut, 10-32 |
|
38 |
Retaining Ring |
|
40 |
Piston, Pin & Ring Set (Std.) (Incl. 41, 42 & 43) |
|
40 |
Piston, Pin & Ring Set (.010\" OS) (In cl. 41, 42 & 43) |
|
42 |
Ring Set (Std.) |
|
42 |
Ring Set (.010\" OS) |
|
43 |
Piston Pin Retaining Ring |
|
45 |
Connecting Rod Assembly (incl. 47 & 4 9) |
|
47 |
Connecting Rod Bolt (1/4-20 x 1-5/16\" ) |
|
48 |
Valve Lifter |
|
49 |
Oil Dipper |
|
50 |
Camshaft (MCR) |
|
60 |
Blower Housing Extension |
|
65 |
Screw, 10-24 x 9/16\" |
|
69 |
Cylinder Cover Gasket |
|
70 |
Cylilnder Cover (Incl. 20, 71, 80-84) |
|
71 |
Crankshaft Bushing |
|
80 |
Governor Shaft |
|
81 |
Washer |
|
82 |
Governor Gear Ass\'y. (Incl. 81) |
|
83 |
Governor Spool |
|
84 |
Retaining Ring |
|
86 |
Screw 1/4-20 x 1-3/16\" |
|
87 |
Screw, 1/4-20 x 1- 11/16\" |
|
89 |
Flywheel Key |
|
90 |
Flywheel (3 Amp, w/ring gear) |
|
92 |
Belleville Washer |
|
93 |
Flywheel Nut (5/8-18) |
|
100 |
Solid State Ignition (Incl. 101) (replaces 35135A) |
|
101 |
Spark Plug Cover |
|
102 |
Solid State Mounting Stud |
|
103 |
Screw, T-15, 10-24 x 15/16\" |
|
110 |
Ground Wire 13.65\" long - dark green - 90deg female & 2 male blades |
|
110A |
Ground Wire (10.50\" with male & femal e flag terminals) |
|
119 |
Cylinder Head Gasket |
|
120 |
Cylinder Head (Incl. 151A & 270A) |
|
125 |
Exhaust Valve (Std) |
|
126 |
Intake Valve (Std.) |
|
126 |
Intake Valve (1/32\" OS) |
|
127 |
Flat Washer |
|
128 |
Belleville Washer (replaces 650690) |
|
130 |
Screw, 5/16-18 x 2-1/2\" |
|
135 |
Resistor Spark Plug (RN4C) also avail able in Packaged Part #740069 |
|
139 |
Governor Gear Bracket |
|
140 |
Screw, 10-24 x 1/2\" (replaces 650836) |
|
150 |
Valve Spring |
|
151 |
Valve Spring Keeper |
|
151A |
Intake Valve Seal |
|
153 |
Push Rod Guide |
|
154 |
Rocker Arm Stud |
|
155 |
Rocker Arm |
|
156 |
Rocker Arm Bearing |
|
157 |
Jam Nut, 5/16-24 |
|
158 |
Push Rod |
|
159 |
Rocker Arm Cover Gasket |
|
160 |
Rocker Arm Cover |
|
161 |
Screw, T-30, 1/4-20 x 1/2\" |
|
161A |
Valve Cover Mounting Stud |
|
169 |
Valve Cover Gasket |
|
170 |
Breather Body |
|
171 |
Breather Element |
|
172 |
Valve Cover |
|
174 |
Screw, 10-24 x 1/2\" |
|
178 |
Nut & Lock Washer 1/4-28 |
|
180 |
Blower Housing Extension |
|
183 |
Choke Bracket |
|
184 |
Carburetor-to-Intake Pipe Gasket |
|
185 |
Intake Pipe |
|
186 |
Governor Link |
|
186B |
Choke Spring |
|
200 |
Manual Control Bracket (Incl. 203, 20 4 & 206) |
|
203 |
Compression Spring |
|
204 |
Screw, T-10, 5-40 x 7/16\" |
|
206 |
Terminal |
|
207 |
Throttle Link |
|
212 |
Bushing (Incl. 14A & 213) |
|
212A |
Bushing |
|
213 |
Screw, 10-24 x 29/32\" |
|
215 |
Control Knob |
|
217 |
Bellcrank Lever |
|
219 |
Choke Rod |
|
220 |
Control Knob |
|
222 |
Screw, 10-32 x 15/32\" |
|
223 |
Screw, T-30, 5/16-18 x 7/8\" |
|
224 |
Intake Pipe Gasket |
|
260 |
Blower Housing |
|
262 |
Screw, 5/16-18 x 9/16\" |
|
265 |
Cylinder Head Cover |
|
266 |
Screw, 5/16-18 x 1-9/32\" |
|
269 |
Exhaust Manifold Gasket |
|
270 |
Exhaust Manifold |
|
270A |
Exhaust Port Liner |
|
271 |
Locking Plate (Manifold) |
|
275 |
Muffler |
|
276 |
Locking Plate |
|
277A |
Screw, 5/16-18 x 4-1/2\" |
|
280 |
Heat Shield |
|
280A |
Radiation Heat Shield |
|
280B |
Baffle |
|
285 |
Starter Cup |
|
290 |
Fuel Line (32.0\" length) Low Permeat i on |
|
292 |
Fuel Line Clamp |
|
293A |
Screw, T-30, 1/4-20 x 27-32\" |
|
298 |
Screw, 1/4-15 x 3/4\" |
|
300A |
Fuel Tank (Incl. 292 & 301) |
|
301 |
Fuel Cap (Red Plastic)(1-1/2\" I.D.) |
|
302 |
Fuel Tank Extension used with Premium Tank |
|
305 |
Oil Fill Tube |
|
307 |
O-Ring |
|
308 |
Fill Tube Clip |
|
310 |
Dipstick |
|
314 |
Screw, 1/4-20 x 3/4\" |
|
315C |
Alternator Coil (18 Watt) |
|
323 |
Terminal |
|
328 |
Ignition Key also available in Packag ed Part #740077 |
|
329A |
Screw, 8-32 x 23/64\" |
|
335 |
Carburetor Cover |
|
335A |
Carburetor Cover |
|
338 |
Screw, 10-32 x 1/2\" |
|
341 |
Fuel Tank Bracket |
|
342A |
Screw, 5/16-18 x 7/8\" |
|
343 |
Key Switch Bracket (Incl. 329A) |
|
345 |
Heat Baffle |
|
350 |
Primer Assembly also available in Pac kaged Part #740101 |
|
351 |
Primer Line |
|
355 |
Starter Handle (Mitten Grip) also ava ilable in Packaged Part #740053B |
|
361 |
Screw, T-30, 1/4-20 x 15/32\" (Electri c Starter Mounting Screws) |
|
369 |
Screw, 12-16 x 5/8\" |
|
370 |
Decal - Primer - International Symbol |
|
370 |
Instruction Decal - Caution - read ow ner\'s manual |
|
370 |
Decal – Tecumseh Logo for Top of Reco il Starter |
|
370 |
Decal - Speed Control, Choke, & Key |
|
370 |
Decal - Electric-Start Button |
|
370 |
Decal - Hot Surfaces |
|
380 |
Carburetor (Incl. 184) |
|
390 |
Rewind Starter (Refer to Division 5, Section C, Page 43, for bre (replaces 590749) |
|
396 |
Electric Starter Motor (220 Volt) (Di vision 5, Section D, Page 3 |
|
400 |
Gasket Set (Incl. items marked *) |
|
420 |
SAE 5W30 4-Cycle Engine Oil (Quart) ( Winter) |
|
704 |
Screw, 1/4-20 x 5/8\" |
|
999 |
Winter Maintenance Kit includes 32 oz . - SAE5W30 Oil, spark plug, switch k ey, fuel stabilizer |
