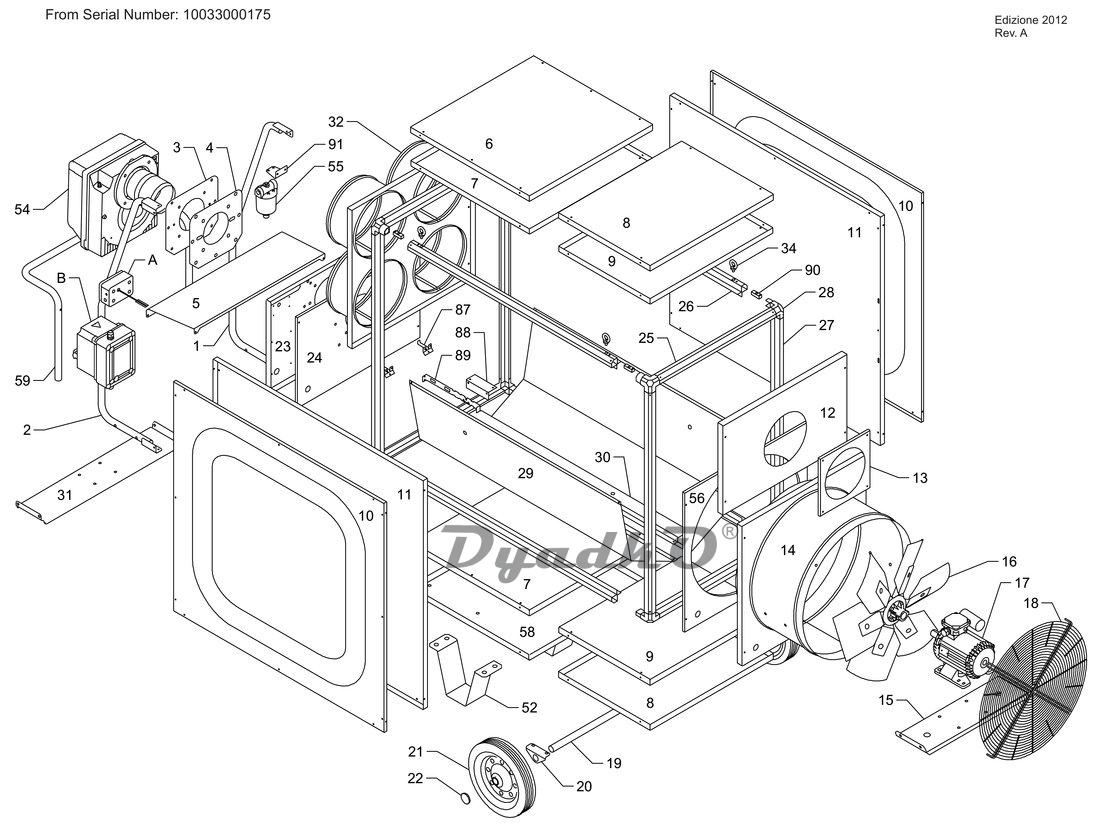

Схема (деталировка) пушки тепловые дизельные MASTER BV 470 FS (2011-2012)(с серийного номера 10033000175) 01 Корпус, Двигатель. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Right Burner Protection
2	Left Burner Protection
3	Universal Slab
4	Universal Slab Seal
5	Burner Cover
6	Top Bottom External Panel
7	Top Internal Panel
8	Top External Panel
9	Bottom External Panel
10	External Lateral Panel
11	Internal Lateral Panel
12	Rear Panel
13	Chimney Bottom
14	Fan Panel
15	Support Bracket
16	Fan
17	Motor
18	Protection Grill
19	Wheels Axle
20	Hub Bracket
21	Black Rubber Wheel Diam. 300
22	Fixing Washer For Shaft With Cup
23	Front Panel Slab
24	Burner Thermic Insulator
25	Chamfered Profile For Panel 25 L=605
26	Chamfered Profile For Panel 25 L=1060
27	Chamfered Profile For Panel 25 L=994,5
28	3 Way Corner For Chamfered Profile
29	Air Direction Sheet
30	Combustion Chamber Bracket
31	Wheels Bracket
32	4-Way Panel
32	1-Way Panel (Optionally)
34	Lifting Eye Bolt M8
52	Front Base Panel
54	Oil Burner RG3 F
55	Oil Pre Heater
56	Flange
58	Bottom External Panel I
59	Holder
87	Burner Stabilizer Bv470
88	Cover Of Capillary Bv
89	Bracket For Capillary Bv
90	Threaded Block
91	Support For Oil Filter With Preheater
	Примечание: S/R = Запчасти доступны по специальному запросу
A	Thermostat Box
B	Electric Box for BV 470 FS
