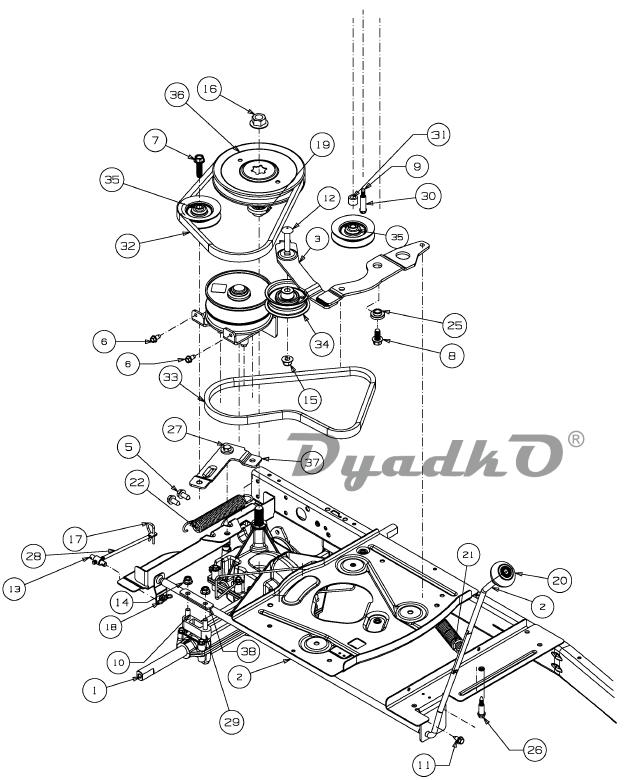

Схема MTD 76 SD (13B226JD600) (2013) Drive system

1	TRANS ASM:SNGL SPD
2	SHFT ASM:PIVOT
3
4
5	SCR:TT:5/16-18:.750:HXINDWSH
6	SCREW:TT:1/4-20:0.500:HXINDWSH
7	SCREW 3/8-16 X 1.375
8	SCR:TT:3/8-16:.750 HXINDWSH
9	SCREW:TT:1/4-20:1.750:HXINDWSH
10	SCREW HHCS:5/16-18:3.5:GR5:STD
11	SCR:TT:1/4-20 x.625:HXINDWH
12	SCR:CRG:3/8-16:1.75:GR1
13	FERRULE ADJUST 1/4-20 x 1.00
14	FLANGED NUT 5/16-18:GRF:NYLON
15	NUT:FLGLK:3/8-16:GRF:NYLON
16	NUT:FLANGE:9/16-18:GR2
17	INTERNAL COTTER PIN .125 DIA
18	PIN-COTTER
19	HUB:PUL:5/8 SPLINE
20	KNOB:SHIFT: BLACK
21	SPR:EXTN:.94 DIA. x 6.74 LG
22	SPRING-BRAKE TENSION
25	FLANGE BUSHING 1.00X.38X.38
26	SHOULDER SCREW
27	SHOULDER SCREW
28	ROD,HYDRO DISENGAGEMENT
29	TRANSAXLE SPACER .68
30	SPACER:.260 x.372 x 1.420 LG
31	SPACER-PULLEY
32	BELT:V-TYP:5L:35.25:POLY
33	V-Belt
34	3UL:IDLR:FLAT 2.75 OD
35	PUL:IDLR:V-TYPE x 3.06
36	PUL:V TYP:6.56 DIA SPUN
37	BRACKET ASSY-IDLER
38
