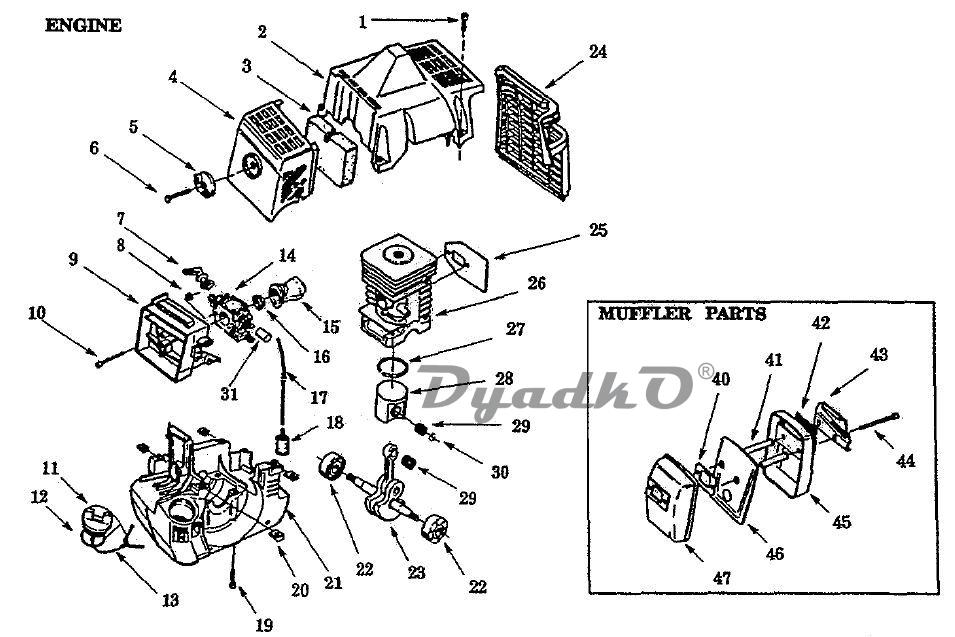

Схема (деталировка) триммеры бензиновые CRAFTSMAN 358.79828 (79828) Двигатель. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Screw
2	Cylinder Cover
3	Air Filter
4	AirFHter Cover ,
5	Air Filter Knob .
6	Screw
7	Choke Lever
8	Nut
9	Air Filter Housing
10	Screw
11	Fuel Cap Assy (Jncl. 12 & 13)
12	“O\" Ring / Casket
13	Fuel Cap Retainer
14	Carburetor Assy.
15	Intake Pipe
16	Support Sleeve
17	Fuel Line
18	Fuel Filter
19	Screw
20	Clip
21	Crankcase Assy Oncl. 4 of 20)
22	Crankcase Bearing
23	Crankshaft & Rod Assy, (fed 2 of 22 and 1 of 31)
24	Heat Shield
25	Muffler Gasket
26	Cylinder & Piston Assy 0nd.27,28,29,30)
27	Piston Ring
28	Piston (IncL 27)
29	Needle Bearings
30	Retaining Clip
31	Guide Tube
40	Muffler Reinforcement plate
41	Distance Pipe
42	Spark Arrestor Screen
43	Muffler Screen Cover
44	Screw
45	Muffler Cover
46	Baffle Plate
47	Muffler Body
	Muffler parts
