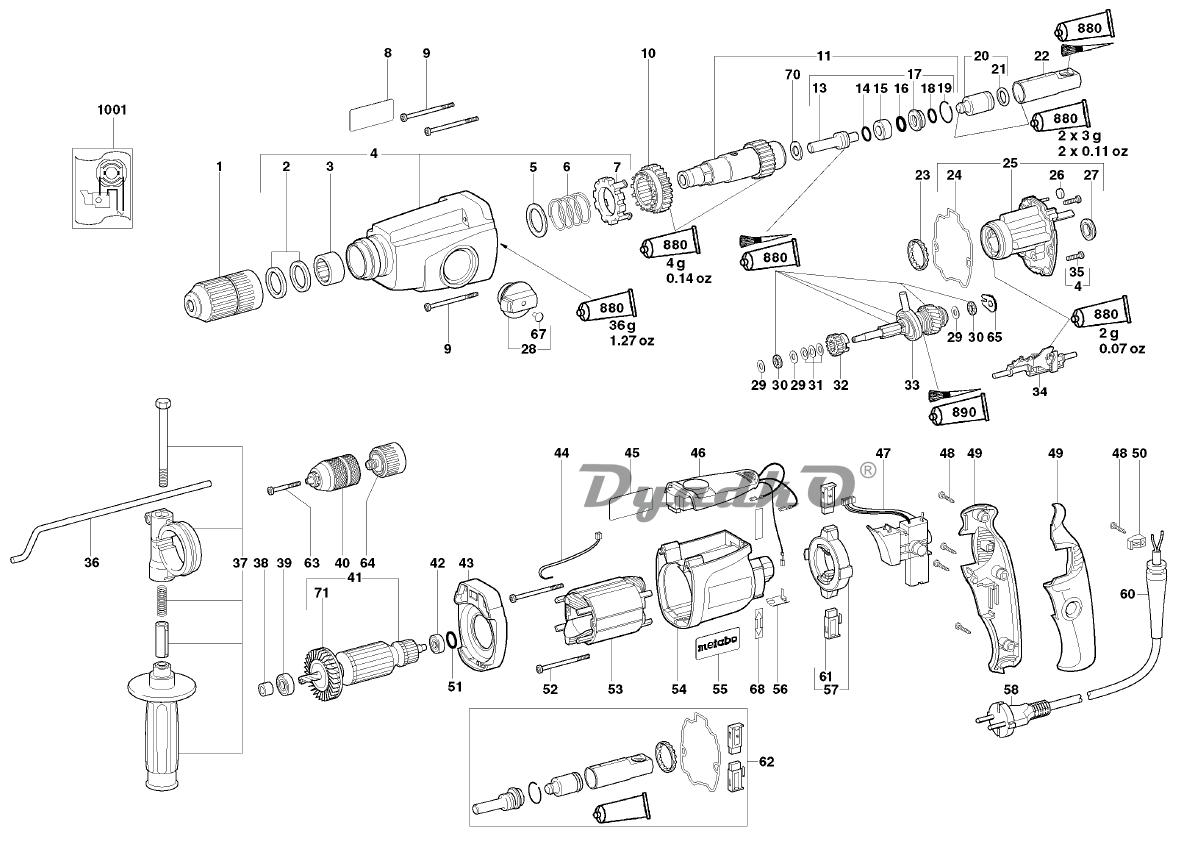

Схема METABO UHE 28 Multi UHE 28 Multi (600961000)

1	Adaptor SDS -PLUS
2	Seal
3	Needle sleeve
4	Gear housing cpl.
5	Supporting disc
6	Pressure spring
7	Retaining ring
8	Metabo label
9	Self-tap. fill. h. screw
10	Sliding block
11	Drill driving sleeve cpl.
13	Intermediate striker cpl.
14	O-ring
15	Supporting ring
16	O-ring
17	Catching sleeve cpl.
18	O-ring
19	Circlip
20	Striker cpl.
21	Sealing ring
22	Exciter sleeve
23	Ball holder
24	Seal
25	Gear flange cpl.
26	Felt seal
27	Rubber buffer
28	Control knob cpl.
29	Washer
30	Axial needle bearing
31	Cup spring
32	Coupling sleeve
33	Intermediate gear cpl.
34	Shift element
35	Fill. head screw(DIN 7985)
36	Depth stop
37	Support handle cpl.
38	Sealing ring
39	Ball bearing, 8x22x7
40	Futuro plus ring S2M 13 mm
41	Armature cpl.230V (w. tacho gen.)
42	Ball bearing, 6X 19X 6
43	Intermediate flange
44	Temperature sensor
45	Rating plate
46	VTC electronic SIGNAL
47	poti switch
48	Self-tap. fill. h. screw
49	Pistol grip 2 piece
50	Cable clip
51	O-ring
52	Self-tap. fill. h. screw
53	Field coil 230V
54	Motor housing
55	Indication label
56	Brush contact
57	Brush holder module
58	Cable with plug
60	Cable sleeve
61	Carbon brush set
62	Maintenance kit
63	Cap screw
64	Adaptor
65	Butting sheet
67	Seal
68	Indication label
70	Ring
71	Fan w. prot. Grid
880	Grease FG 126
890	Grease SF 011 50Gr 1,8oz
1000	Diagram
