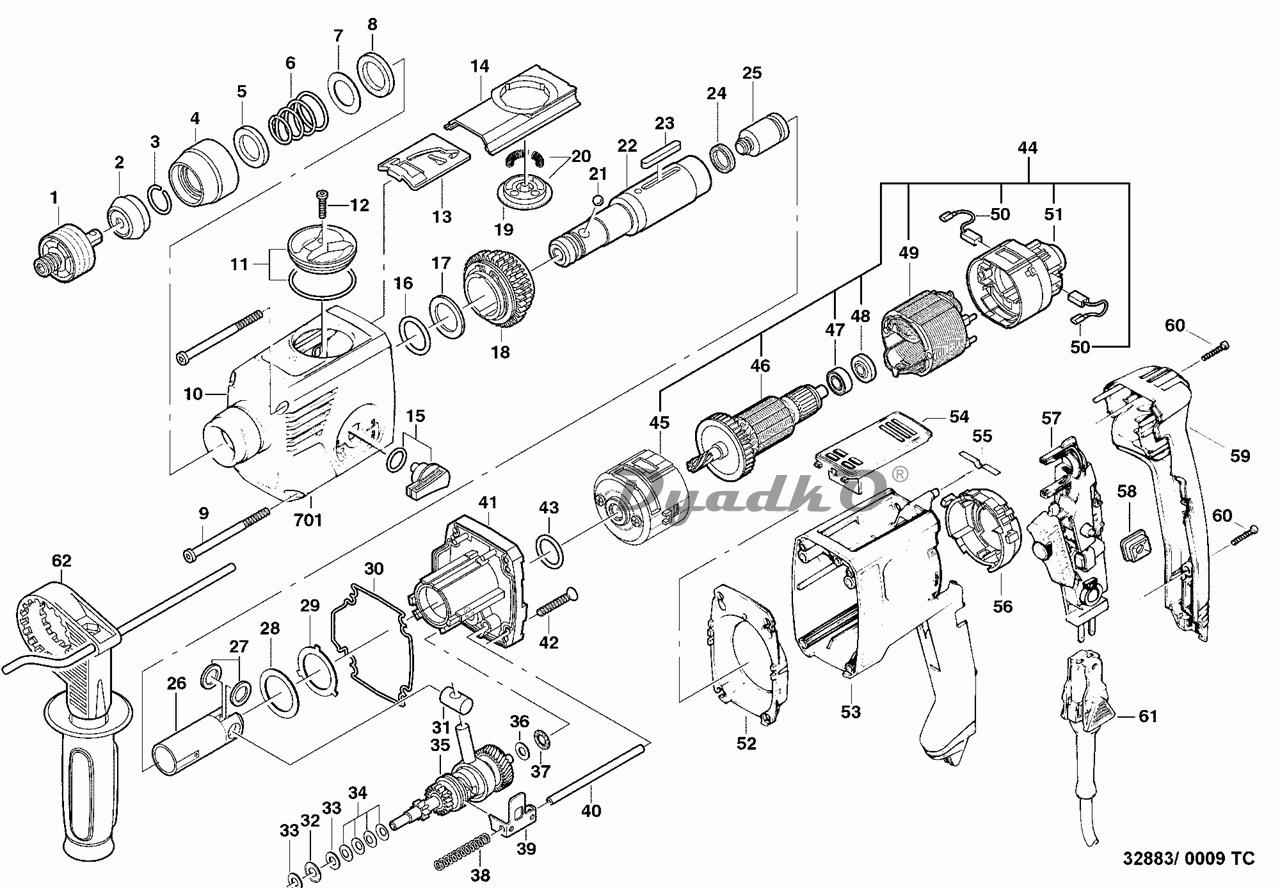

Схема (деталировка) перфораторы KRESS 600 PX, 750 PXC Перфоратор. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	SCREWING ADAPTER
2	PROTECTIVE CAP
3	RETAINING RING
4	ROTATING SLEEVE
5	WASHER-WEAR PART
6	CONICAL SPRING
7	8\"
8	PACKING RING
9	SCREW 75 MM
10	GEAR CASING PREASSEMBLED
11	SWITCHING KNOB 2- SPEED BLACK
12	SCREW TORX KT 3X14
13	SWITCHING PLATE
14	GUIDE PLATE
15	SWITCHING LEVER CPL.
16	O-RING
17	DISK
18	GEAR WHEEL BLOCK SAFETY CLUTCH
19	GUIDE DISK
20	HOLDING DISK CPL. WITH SPRINGS
21	STEEL BALL 7 MM
22	SPINDLE CPL.
23	FEATHER KEY
24	O-RING
25	FREE PISTON
26	RECIPROCATING PISTON
27	WASHER
28	AXIAL DISK
29	DISK
30	SEALING JOINT
31	BEARING BOLT
32	AXIAL BEARING
33	WASHER
34	PLATE SPRING 12,5X6,2X0,5
35	BACK GEAR SHAFT
36	WASHER
37	AXIAL BEARING
38	PRESSURE SPRING
39	SWITCHING FORK
40	SWITCHING SHAFT
41	ZYLINDER FLANGE
42	COUNTERSUNK SCREW KT 4X30
43	FELT RING
44	MP 40 MOTOR
45	HOUSING CUP MAXX POWER
46	ARMATURE WITH BEARING A фото1 фото2
47	BALL BEARING 607 ZZ
48	MAGNETING RING
49	STATOR MAXX
50	CARBON BRUSH
51	ENDSHIELD MAXX +C.BRUSH RING
52	AIR STREAM DIRECTOR
53	MOTOR CASING
54	VENTILATION COVER
55	STOP SPRING
56	L/R-SWITCHING RING
57	SWITCHING MODULE
58	LOCK KNOB ADAPTER
59	COVER FOR HANDLE
60	SCREW KT 4X23
61	MAINS SUPPLY MODULE
62	HMT-2K/K
65	LEFT- RIGHT LOGO
701	GEAR CPL. 600 PX/750 PXC
