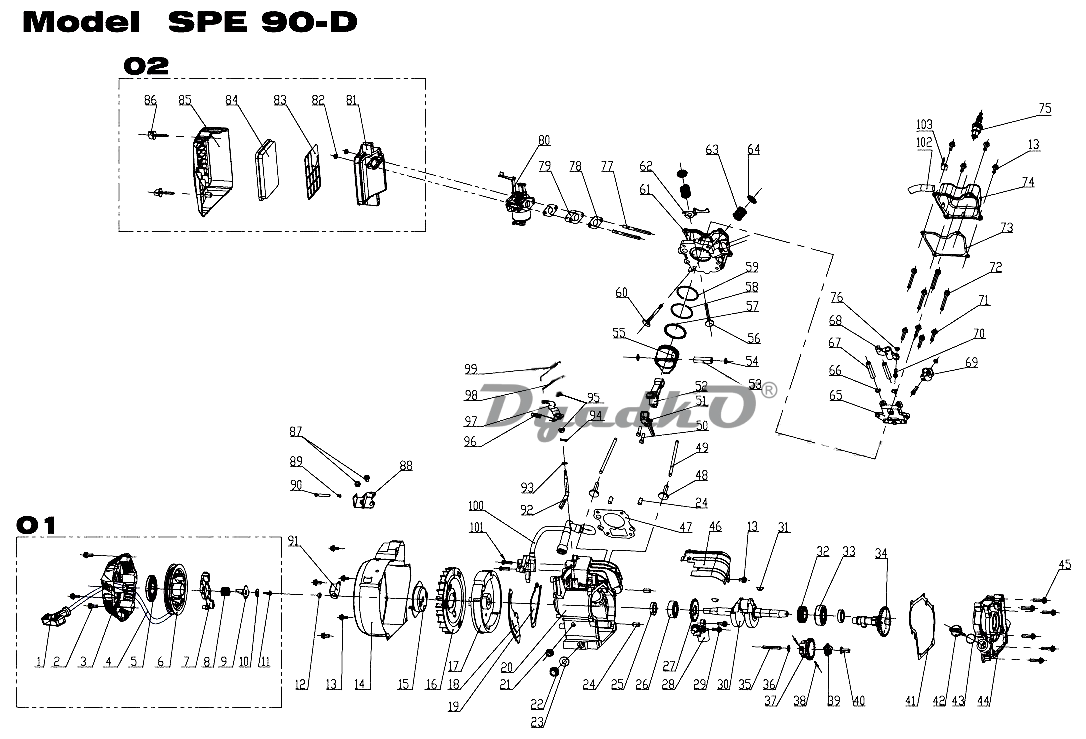

Схема FUBAG BS 1100 Двигатель SPE90-D

1 Rope handle
2 Screw M6×10
3 Starter case
4 Rope
5 Spiral spring
6 Drum sheave
7 Driving pawl
8 Spring
9 Driving pawl
10 Lock washer
11 Flywheel nut
12 Screw M6×12
13 Fan cas
14 Starter bush
15 Fan
16 Flywheel
17 Air shroud
18 Air shroud
19 Crankcase
20 Flat washer 10
21 Nut M10
22 Drain plug
23 Drain plug seal
24 Dowel pin
25 Ball bearing 6203
26 Oil seal
27 Governing driving gear
28 Oil lever SW
29 Screw M6×16
30 Crankshaft
31 Key 5.0×6.5×16
32 Timing gear
33 Ball bearing 6303
34 Camshaft assembly
35 Governing gear shaft
36 Washer
37 Governing gear
38 Flyweight pin
39 Flyweight
40 Collar
41 Crankcase gasket
42 Crankcase cover
43 Screw M6×25
44 Oil gauge seal
45 Oil gauge
46 Air shroud
47 Cylinder gasket
48 Valve lifter
49 Push rod
50 Connecting rod screw M6×25
51 Connecting rod cap
52 Connecting rod body
53 Piston pin
54 Piston pin circlip
55 Poston
56 Intake valve
57 Third piston ring
58 Second piston ring
59 First piston ring
60 Exhaust valve
61 Cylinder head assembly
62 Oil channel cover
63 Valve spring
64 Valve retainer
65 Rocker arm seat
66 Circlip
67 Rocker arm shaft
68 Rocker arm (A)
69 Rocker arm (B)
70 Valve clearance adjusting screw
71 Screw M6×16
72 Screw M8×55
73 Head cover gasket
74 Cylinder head cover assembly
75 Spark plug
76 Valve clearance adjusting nut
77 Intake bolt
78 Carburetor gasket
79 Carburetor connector
80 Carburetor
81 Air cleaner base
82 Nut M6
83 Element seat
84 Air cleaner element
85 Air cleaner cover
86 Cover screw
87 Press plate
88 Flat washer
89 Governing lever rack
90 Governing lever
91 Screw M6×8
92 Spring
94 Transition
95 Governing shaft
96 circlip
97 Flat washer 6
98 Clip
99 Nut
100 Governing spring
101 Governing arm
102 Carburetor connecting rod
103 Carburetor spring
104 T.C.I
105 Screw M6×20
110 Exhaust bolt
118 Diode
119 Clip
125 Fuel hose
127 Clip
128 Applique assembly
Фильтр в сборе
Стартер в сборе
