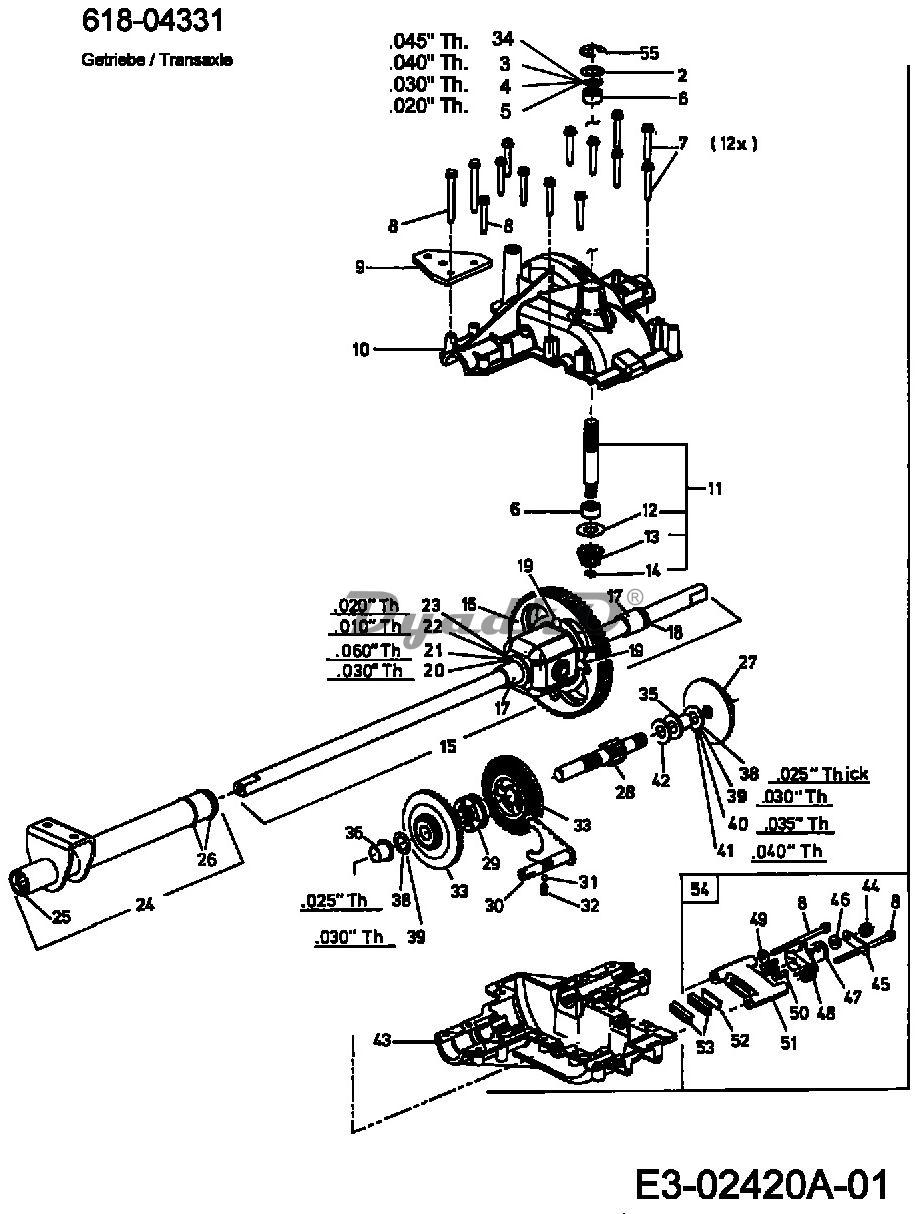

Схема YARD-MAN AN 5150 K (2009) Gearbox

1	\'fransaxle
2	Circlip
6	Bearing-needle .625x.813x.495
7	Scntt:1/4-20:1.625:hxindwsh
8	Screw:tt:1/4-20:2.375:hxindwsh
9	Brkt:mt:hitch
10	Housing
11	Input Shaft
12	V\\fash:thrst:.635 X 1.26 X .06
13	Pinion Input 14t
14	Retaining Ring 7/16\"
15	Diff Assy
16	Gear:spur:65t Diff
17	Brg:sleeve:.75 X 1.00 X 1.00
18	Oil Seal:.75x1.00x.125
19	Riv:but:.25 X.875
20	Wash:flat:.760 Id X 1.50 Od
21	Wash:fl:.760 X 1.50 X.06:ht
22	V\\fash-flat:.760 X 1.500 X.010
23	Wash:flat:.760 X 1.500 X .020
24	Til be Assy
25	Brg:ndl:.7500 X 1.000 X .68
26	О Ring
27	Brake Disc
28	Shaft
29	Coir. Clu
30	Fork Shift
31	Ball:detnt:7/32
32	Spr:comprs:.2569 X.1549 X.5480
33	Gear
35	Brg:flg:5/8 X 3/4 X 15/16
36	Brg:flg:5/8 X 3/4 X 3/4
38	Vfcshenthrust 1.00X.632 X.025
39	Wash:flat:16x22x1 Din 988
40	Wash:fl:.632x1.00X.035
41	Was herflat:.634x1.00x.04:ht
42	Vfcsher-fl 5/8 Id X 1.0 Od
43	Hsgilwr
44	Nut:hexlk:5/16-24:g r2:ny Ion
45	Bracket-anti Rotation
46	V\\fash:flat:.343 X .880 X .062
47	Arm-actuating
48	Spring-torsion .75 Od X3 Coils
49	V\\fasher:flat:.281 X.50 X.063
50	Pin:actr:brake: .3125
51	Yoke Brake
52	Plate-puck
53	Brake Pad
54	Brake Asm:yoke:lh
55	Ring:e-type:.750
