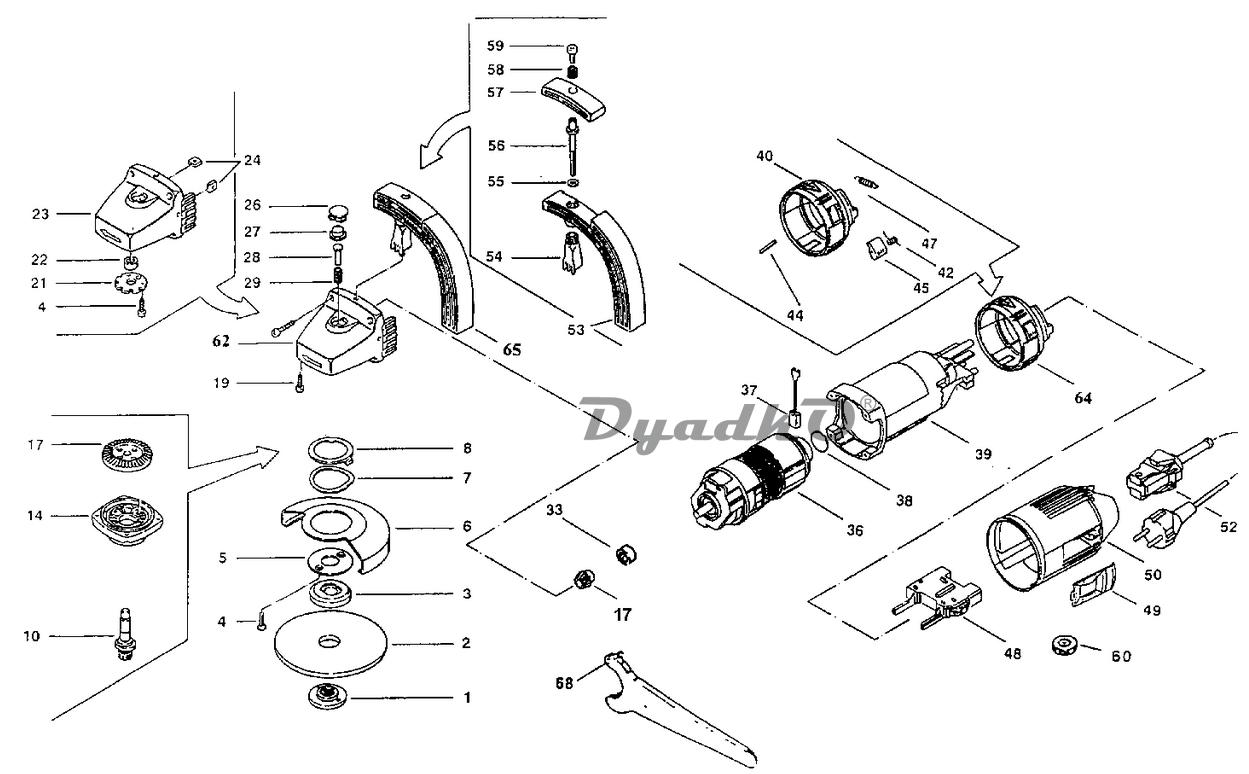

Схема (деталировка) углошлифовальные машины сетевые KRESS WS 6390 E. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	FLANGE NUT
2	REMAINING STOCK
3	FLANGE
4	SCREW 4 X 16
5	COUNTER FLANGE
6	PROTECTION GUARD 125 MM
7	WASHER FOR BALL BEARING
8	WASHER
10	DRIVING SPINDLE
14	GEAR FLANGE WITH BEARING
17	REMAINING STOCK
19	SCREW KT 4,0 x 19
21	FLANGE
22	NEEDLE BUSH
23	GEAR CASING,BLUE
24	SQUARE-HEAD NUT M 6 DIN 562
26	RING FOR DIAPHRAGM
27	DIAPHRAGM
28	ARRESTING PIN
29	PRESSURE SPRING
33	DISTANCE RING
36	MAXX POWER MOTOR
37	CARBON BRUSH
38	COVER FOR TACHO
39	MOTOR CASING,GREY
40	SWITCHING RING
42	SWITCH SPRING
44	CYLINDRICAL PIN 1,5 X 25
45	LEVER
47	TENSION SPRING
48	ELECTRONIC MODULE
49	ADAPTER
50	CASING
52	MAINS SUPPLY MODULE
53	ARCHED HANDLE,BLUE
54	DISTANCE HOLDER
55	WASHER 7 X 13 X 0,5
56	SCREW FOR ARCHED HANDLE
57	ARRESTING PART FOR HANDLE
58	PRESSURE SPRING
59	COUNTERSUNK SCREW M4X8 DIN7991
60	SETTING WHEEL
62	GEAR CASING PREASSEMBLED
64	SWITCHING RING
65	ARCHED HANDLE CPL.PREASSEMBLED
68	TWO PIN CAPSTAN WRENCH
69	TYPE LOGO WS 6390 E
70	LOGO
71	USER MANUAL WS 6390 E
