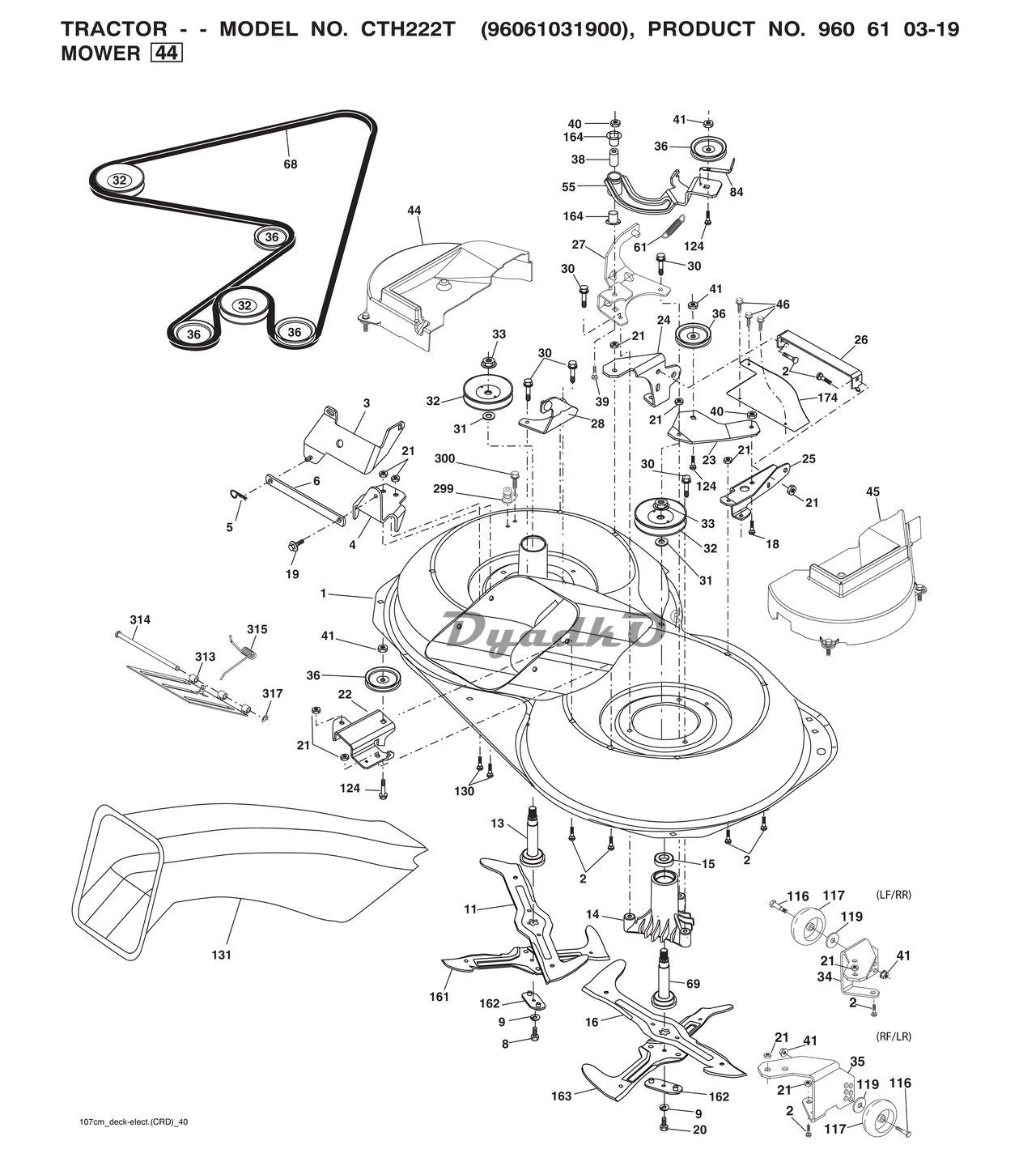

Схема HUSQVARNA CTH 222 T (96061031900) 08 Дека, корпус подшипника вала, вал привода ножей, ремень привода ножей

1 Housing Asm. Mower 107 CRD
2 Bolt Rdhd Sqnk 5/16-18 unc x 3/4
3 Bracket Asm. S-Bar Chass 92 CRD
4 Bracket Bar Sway Deck 107 CRD
5 Retainer Spring
6 Bar Sway CRD
8 Bolt 3/8-24 x 1.25 Gr. 8 Patched
9 Washer Lock Hvy 3/8 Unplated
11 Blade 3-1 LH 107 CRD
13 Shaft Asm. w/Lower Bearing
14 Housing Mandrel Vented (Machd)
15 Bearing Ball Mandrel
16 Blade 3-1 RH 107 CRD
18 Bolt RdHd Sqnk 3/8-16 x 3/4
19 Bolt Shoulder 5/16-18 Thd Form
20 Bolt 3/8-24 x 1.25 Gr.8 Ptch Lhthd
21 Nut Crown Lock 5/16-18
22 Bracket Idler Sprt RR 107 CRD
23 Bracket Idler Sprt RF 107 CRD
24 Bracket Suspension LF 107 CRD
25 Bracket Suspension RF 107 CRD
26 Brace Support Susp Frt CRD
27 Bracket Asm. Susp RR 107 CRD
28 Bracket Asm. Susp LR 107 CRD
30 Screw Thd Rolling Hex
31 Washer Spacer
32 Mandrel Pulleys
33 Nut Flg Top Lock
34 Bracket Gauge Wheel LF/RR
35 Bracket Gauge Wheel RF/LR
36 Pulley Idler V-Groove Dim 4.25
38 Spacer Hub Arm Idler 107 CRD
39 Bolt Rdhd 3/8-16 unc x 2-3/4 Gr. 5
40 Nut Crownlock 3/8-16 unc
41 Nut Flangelock 3/8-16 unc
44 Cover Mandrel LH 107 CRD
45 Cover Mandrel RH 107 CRD
46 Screw Thd Roll 1/4-20 x 5/8
55 Arm Idler 107 CRD
61 Spring Tension Belt
68 Belt Drive
69 Shaft Asm w/Lwr Brg RH Thd CRD
84 Keeper Belt Idler
116 Bolt Shoulder
117 Wheel Gauge Donut Wide
119 Washer 13/32 x 1-1/4 x 12 Ga.
124 Bolt Carr Sh 3/8-16 x 1-1/2 Gr. 5
130 Bolt Rdhdsqnk 5/16-18 unc x 3/4
131 Chute Bagger CRD
161 Blade Cross LH 107
162 Adapter Weldment Blade 107
163 Blade Cross RH 107
164 Bearing Col. Strg.
174 Guard Susp. Front
299 Port Washout
300 Screw TT #10-32
313 Door EZ Mulch
314 Pin Hinge
315 Spring
317 E-Ring 5/16\"
Mandrel Assembly (Includes housing (key #14), shaft assembly (key #69), and bearing (key #15) only - pulley/nut/washer and blade bolt/washers not included)
Mandrel Asm CRD LH Threads SVC
Replacement Mower Complete
