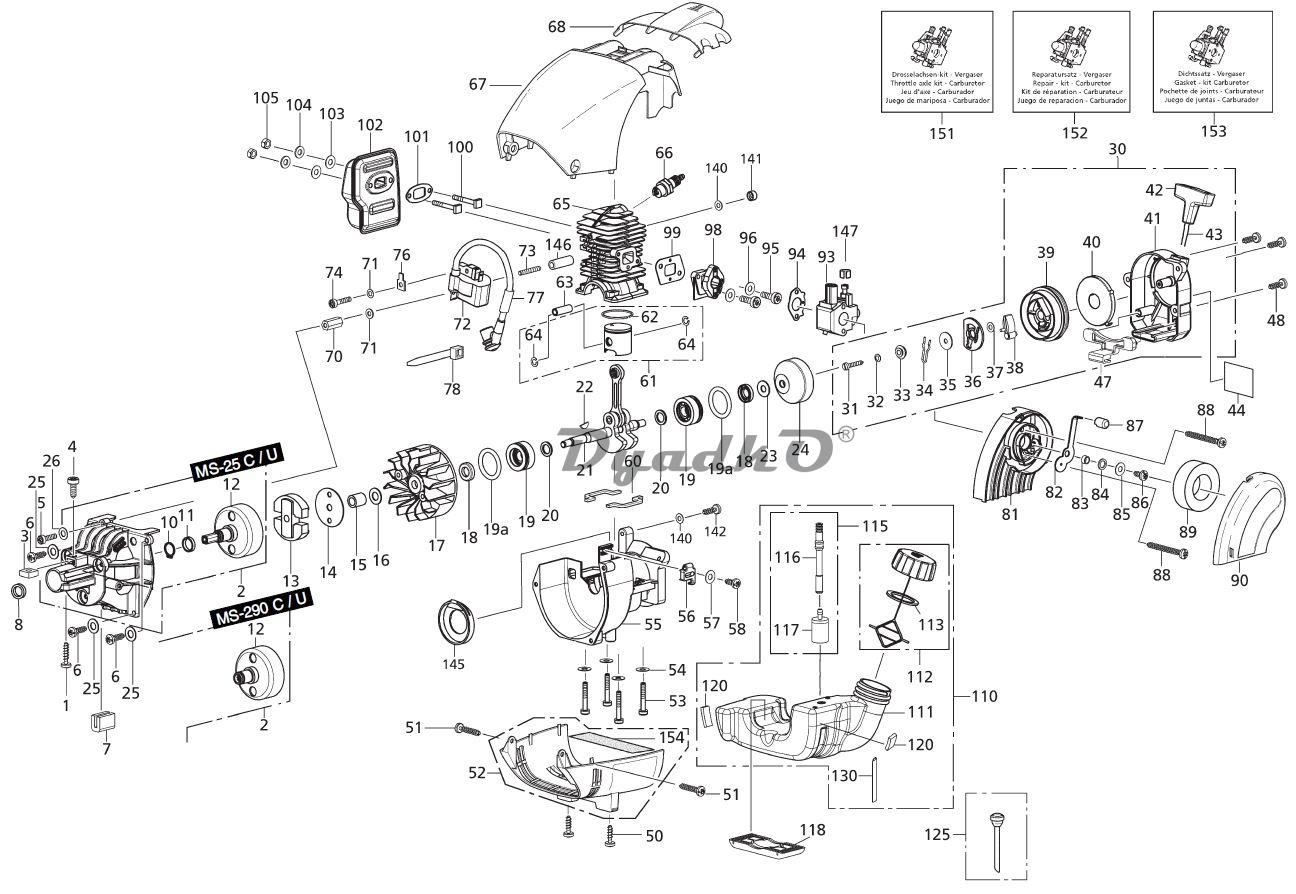

Схема (деталировка) триммеры бензиновые DOLMAR MS 25C, MS 25U, MS 290C, MS 290U Engine, housing MS 290U. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	screw
2	flange housing
3	nut
4	screw
5	screw
7	AV profile
8	spacer
10	circlip
11	spacer
12	clutch drum
13	centrifugal clutch
14	washer
15	spacer tube
16	washer
17	fan wheel
18	oil seal
19	bearing sleeve
19a	o-ring
20	washer
21	crankshaft
22	disc spring
23	spring
24	pulley
26	washer
30	starter
31	screw
32	safety washer
33	spacer
34	pin
35	washer
36	template
37	spring washer
38	starter ratchet
39	rope pulley
40	spring cassette
41	starter housing
42	starter grip
43	starter rope
44	sticker
47	damping piece
48	screw
50	screw
51	screw
52	housing
53	f.h.screw
54	washer
55	crankcase
56	counter bearing
57	washer
58	screw
61	piston
62	piston ring
63	piston pin
65	cylinder
66	spark plug
67	cover
68	ignition cap
70	Hex. nut
72	ignition coil
73	stud screw
74	screw
76	flat plug
77	felt
78	cable strap
81	filter housing
82	choke flap
83	spacer tube
84	washer
85	washer
86	screw
87	knob
89	filterplate
90	filter lid
93	carburetor
94	carburetor gasket
95	screw
96	safety washer
98	intake socket
99	manifold gasket
100	screw
101	exhaust gasket
102	exhaust
103	washer
104	safety washer
105	hex. nut
110	tank cpI.
111	tank
112	tank cap
113	gasket
115	fuel filter
116	fuel hose
117	fuel pick-up
118	damping piece
125	ventilation hose
130	hose
141	carb. port piece
142	screw
145	pot
146	sleeve
147	retaining ring
151	throttle axle kit - carburetor
152	repair set - carburetor
153	gasket set - carburetor
154	felt
