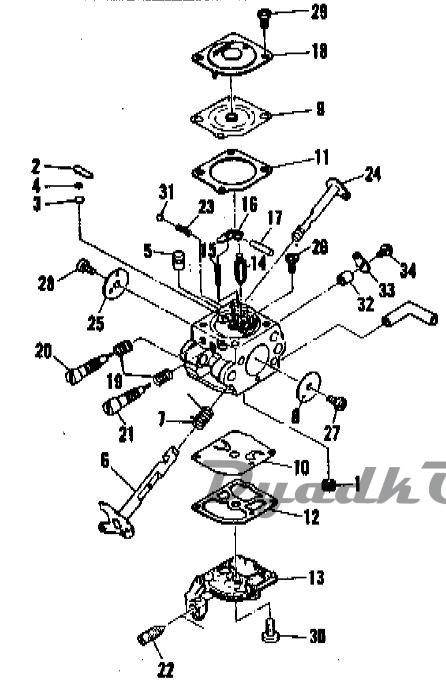

Схема (деталировка) пилы цепные бензиновые MCCULLOCH Mac 3516 Carburetor assembly. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Strainer (3)
1	Used on 32cc end 35cc sews
2	Used on 35cc sews
2	Plug, Welch (3)
3	Valve, Chock
3	Kit, Carburetor Repair RB-39
4	Kit, Gasket/Diaphragm GND-35
4	Retainer, Check Valve
6	Shaft АваетЫу, Throttle
6	Nozzle Assembly, Check Valve
7	Spring, Throttle Return
8	Vbtve, Throttle
9	Diaphragm Assembly, Metering (3,4)
10	Diaphragm, Pump (3,4)
11	Gasket, Metering Chamber (3,4)
12	Gasket, Pump (3,4)
13	Cover, Pump
14	Valve, Inlet Needle (3)
15	Spring, Metering Lever (3)
16	Lever, Metering (3)
17	Pin (3)
18	Cover, Me taring Chamber
19	Spring, Adjust Screw
20	Screw, Mein Mixture.
21	Screw, Idle Mixture
22	Screw Throttle Adjust
23	Spring, Friction
24	Shall Assembly. Choke
25	Valve, Choke
26	Screw, Pin
27	Screw, Throttle VWve
28	Screw, Choke Velwe
29	Screw, Metering Chamber
30	Screw, Pump Cover
31	Ball, Steal
32	Collar
33	Lever, Throttle
34	Screw, Throttle Lever
	Обозначение сносок:
	Carburetor, Zama М28 (1)
	Caiburetor. Zama М33 (2)
