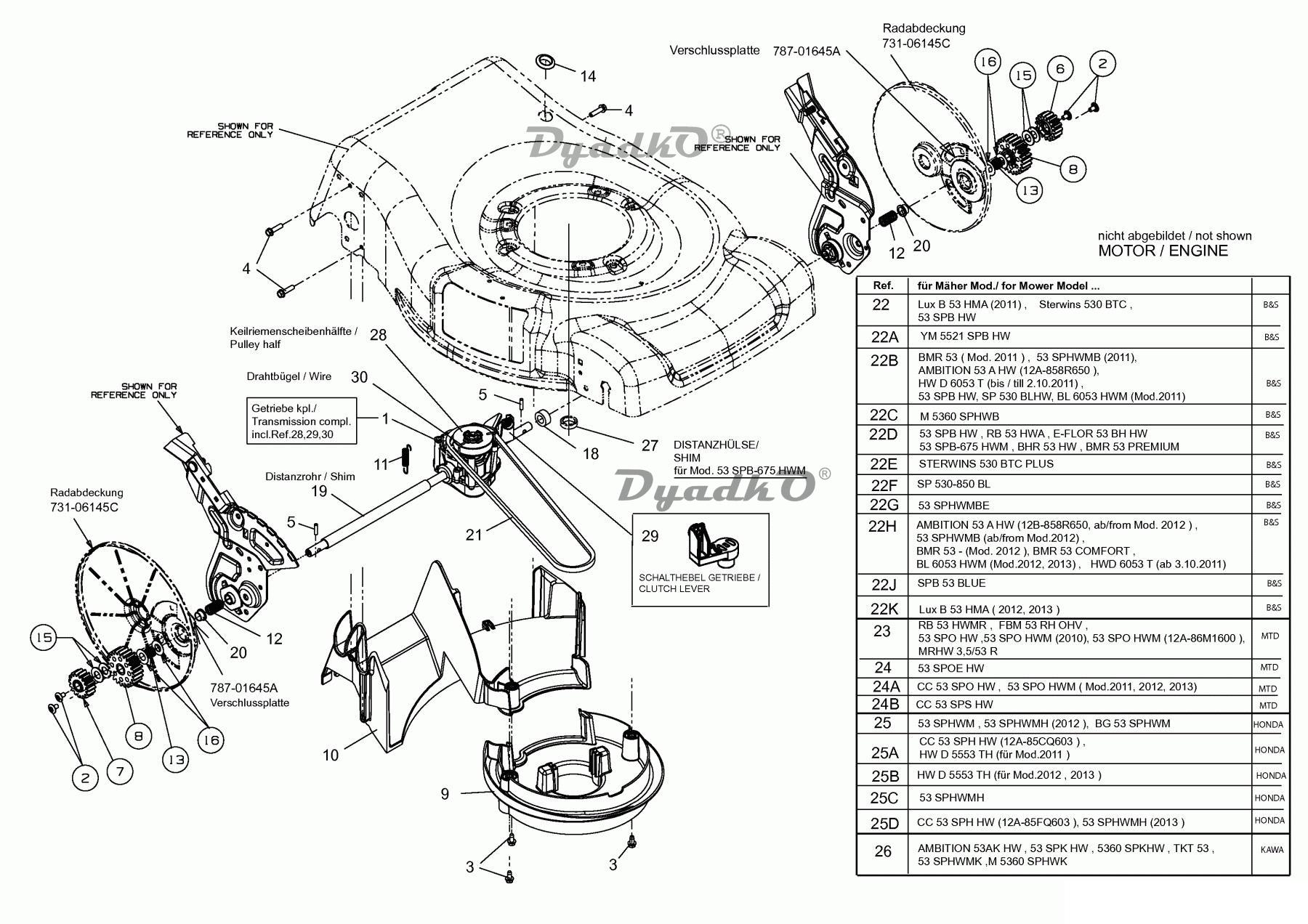

Схема MTD CC 53 SPHHW (12A-85FQ603) (2013) Gearbox, Engine

1	TRANS ASM:SELF PROPELLED
2	SCR:1/4-20 x.390:PANTRXI
3	SCREW:TT:1/4-20:0.500:HXINDWSH
4	SCR:HL:1/4-15:1.000:HXINDWSH
5	DOWEL PIN:H.G.PROD. 3/16 x 3/4
6	GEAR:SPUR:16T:BRNZ BUSH:LH
7	GEAR:SPUR:16T:BRNZ BUSH:RH
8	GEAR:SPUR:23T
9	MOTOR SUPPORT, BLACK
10	BAFFLE REAR: SP 800
11	SPR:EXTN:.375 OD x 2.2 LG
12	SPR:COMPRS:0.63 x 1.00
13	SPRING WAVE (MULTIPLE WAVES)
14	GROM:RUBR:.77 ID x.91 OD x.35
15	WASHER:FL:.510 X 1.000 X .060
16	WASH:THRST:.508x1.000x.020
18	SPACER:13.5mm ID x 10.7 mm LG
19	SPCR:SLV:14MMX17MMX227MM
20	SPCR:0.5IDX0.58ODX.35LG
21	BELT:V-TYP:3L x 32.71 POLY
22	B-ENGINE B&S 650 SERIES
22A	B-ENGINE B&S 700 SERIES 161CC
22B	ENGINE B&S QUANTUM
22C	B-ENGINE B&S 800 SERIES 175CC
22D	B-ENGINE B&S 675 SERIES QUANTU
22E	B-ENGINE B&S 800 SERIES 175CC
22F	B-ENGINE B&S 850 SERIES 190CC
22G	-
22H	MOTOR B&S 50 QUANTUM MODULAR
22J	B-ENGINE B&S 800 SERIES 175CC
22K	MOTOR B&S 650 SERIES
23	ENGINE 173 CC OHV VERTIC SHAFT
24	ENGINE 173 CC OHV VERTIC SHAFT
24A	ENGINE 173 CC OHV VERTIC SHAFT
24B	MOTOR 195 CC OHV VERTIC SHAFT
25	B-ENGINE HONDA 25/61,9MM SHAFT
25A	GCV 160E-A3-G9-SD
25B	GCV 160E-A4-G9-SD
25C	B-MOTOR HONDA 22,2/80,2 SHAFT
25D	-
26	ENGINE KAWA 6.0HP FJ 180V
27	SPACER:7/8 x 1.125 x .305
28	PUL:HALF:2.5 OD
29	LEVER CLUTCH
30	WIRE:TRANS:EURO
