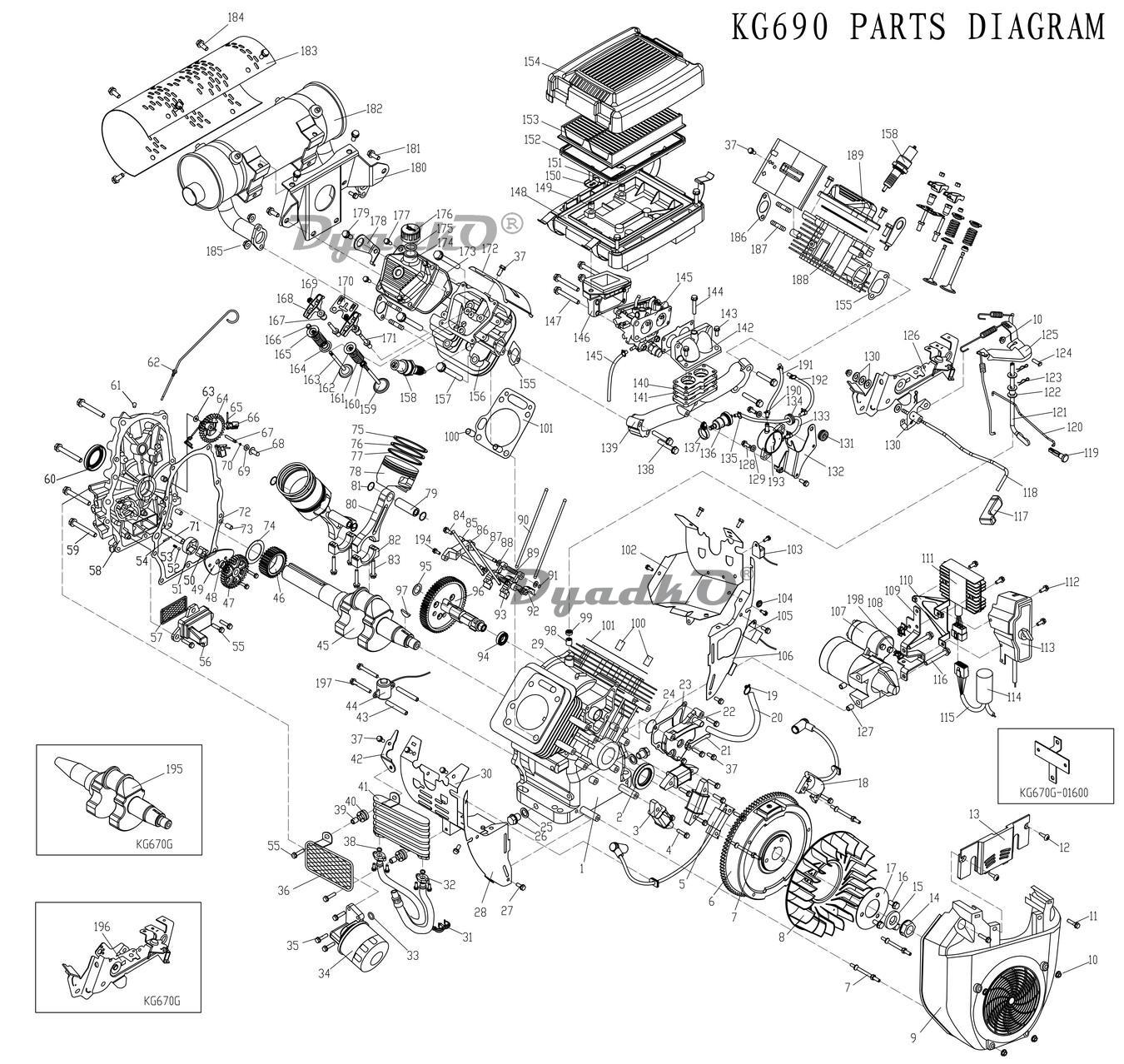

1 |
Crankcase body |
|
2 |
Rear oil seal |
|
3 |
Stator |
|
4 |
M6x35 bolt |
|
5 |
Left ignition coil assembly |
|
6 |
Flywheel part |
|
7 |
Air guide cover stuc |
|
8 |
Impeller |
|
9 |
Air guide cover assembly |
|
10 |
M6 nut |
|
11 |
M6x25 bolt |
|
12 |
ST5.5 |
|
13 |
Decorative plate |
|
14 |
Flywheel nut |
|
15 |
Flywheel nut gasket |
|
16 |
M8x16 bolt |
|
17 |
Impeller pressure plate |
|
18 |
Right ignition coil assembly |
|
19 |
Air exhaust pipe band |
|
20 |
Air exhaust pipe of breather |
|
21 |
Retainer plate |
|
22 |
Breather cover |
|
23 |
Breather cover shim |
|
24 |
Breather piece |
|
25 |
Oil drain plug shim |
|
26 |
Oil drain plug |
|
27 |
M6x10 blot |
|
28 |
Side plate weldment of right-below air plate |
|
29 |
Ventilating pipe |
|
30 |
Right below air plate weldment |
|
31 |
Engine oil pipe band |
|
32 |
Engine |
|
33 |
O-ring |
|
34 |
Engine oil filter assembly |
|
35 |
M6x30 bolt |
|
36 |
Engine cooler protector meshwork weldment |
|
37 |
M6x16 bolt |
|
38 |
O-ring |
|
39 |
Damping washer bush |
|
40 |
Engine cooler damping gasket |
|
41 |
Engine cooler weldment |
|
42 |
Connecting board weldment |
|
43 |
Bushing pipe |
|
44 |
Oil alarm |
|
45 |
Crankshaft |
|
46 |
Crankshaft timing gear |
|
47 |
Engine oil pump drive gear |
|
48 |
Rotator pump shaft bushing |
|
49 |
Engine oil pump cover |
|
50 |
Engine oil pump inner rotator |
|
51 |
Engine oil pump exterior rotator |
|
52 |
Steel ball |
|
53 |
Pressure-limiting valve spring |
|
54 |
Inner rotator drive pin |
|
55 |
M6X20 bolt |
|
56 |
Engne oil rough filter shell |
|
57 |
Rough strainer asseribly |
|
58 |
Crankcase cover |
|
59 |
M8x50 bolt |
|
60 |
Front oil seal |
|
61 |
Oil filter plug |
|
62 |
Oil dipstick |
|
63 |
Flat gasket |
|
64 |
Governor gear |
|
65 |
The weight pin |
|
66 |
The weight |
|
67 |
Governor shaft |
|
68 |
Slide bush |
|
69 |
Slide bush shim |
|
70 |
Retainer ring |
|
71 |
Rotator pump shaft |
|
72 |
Crankcase cover shim |
|
73 |
Crankcase cover seat pin |
|
74 |
Crankcase regulating shim |
|
75 |
1st compression ring |
|
76 |
2nd compression ring |
|
77 |
Oil ring part |
|
78 |
Piston |
|
79 |
Piston pin |
|
80 |
Connecting rod body |
|
81 |
Retainer ring |
|
82 |
Connecting rod cover |
|
83 |
Connecting rod bolt |
|
84 |
M6x25 bolt |
|
85 |
Locating pin |
|
86 |
Tappet connecting plate |
|
87 |
Tappet pin shaft |
|
88 |
Flat gasket |
|
89 |
Regulating spring |
|
90 |
Valve pushing rod |
|
91 |
Retainer ring |
|
92 |
Valve tappet I |
|
93 |
Valve tappet II |
|
94 |
Bearing 17x35x10 |
|
95 |
Camshaft regulation gasket |
|
96 |
Camshaft part |
|
97 |
Woodruff key |
|
98 |
Needle bearing 7941/8 |
|
99 |
Oil seal of speed-limiting pushing rod |
|
100 |
Cylinder head seat pin |
|
101 |
Cylinder heod shim |
|
102 |
Left-below air guide weldment |
|
103 |
Alarm system |
|
104 |
Lead protector sheath |
|
105 |
Shut down switch |
|
106 |
Side plate weldment of left-below air guide plate |
|
107 |
Starter motor assembly |
|
108 |
Nylon pipe clamp I |
|
109 |
Switch mounting frame weldment |
|
110 |
Voltage regulator bracket weldment |
|
111 |
Charging voltage regulator assembly |
|
112 |
M6x16 bolt |
|
113 |
Starter switch assembly |
|
114 |
Wire sheath |
|
115 |
Harness assembly of voltage regulator |
|
116 |
M8x110 bolt |
|
117 |
Throttle operation grip |
|
118 |
Throttle operation lever |
|
119 |
Choke pulling lever grip |
|
120 |
Choke pulling lever |
|
121 |
Speed control pushing road |
|
122 |
Pushing rod shim |
|
123 |
Band reed |
|
124 |
M6X16 bolt |
|
125 |
Governor arm |
|
126 |
Speed-regulation supporting plate assembly |
|
127 |
Starting motor seat pin |
|
128 |
M6X16 screw |
|
129 |
Big gasket |
|
130 |
Throttle operation grip assembly |
|
131 |
Setting bush |
|
132 |
Vacuum pump mounting bracket |
|
133 |
Fuel intake pipe |
|
134 |
Fuel intake pipe setting bush |
|
135 |
Band (]) |
|
136 |
Filter element |
|
137 |
Filter element mounting band |
|
138 |
M8X45 bolt |
|
139 |
Air intake pipe |
|
140 |
Carburetor insulotor |
|
141 |
Carburetor shim |
|
142 |
Air inlet connecting pipe |
|
143 |
M6X30 bolt |
|
144 |
M6x65 bolt |
|
145 |
Carburetor assembly |
|
146 |
Choke shell |
|
147 |
M6 x 90 bolt |
|
148 |
Air cleaner lower ci\over joint part |
|
149 |
Bush I |
|
150 |
Filter element supporting plate |
|
151 |
M6X28 bolt |
|
152 |
Air cleaner element seal gasket |
|
153 |
Air cleaner element joint |
|
154 |
Air cleaner upper cover |
|
155 |
Intake pipe shim |
|
156 |
Cylinder head machining part(ll) |
|
157 |
Cylinder head M10x80 bolt |
|
158 |
Spark plug |
|
159 |
Air intake valve |
|
160 |
Air intake valve conduit oil seal |
|
161 |
Air valve spring |
|
162 |
Intake valve spring seat |
|
163 |
Air exhaust valve |
|
164 |
Air exhaust spring lower seat |
|
165 |
Exhaust valve spring seat |
|
166 |
Exhaust valve regulation shim |
|
167 |
Rocker shaft |
|
168 |
Air volve rocker arm |
|
169 |
Rocker shaft regulation nut |
|
170 |
Pushing rod pilot plate |
|
171 |
Rocker shaft bolt |
|
172 |
Wind-proof plate |
|
173 |
Cylinder head cover seal ring |
|
174 |
Cylinder head cover (]) |
|
175 |
Refueling port |
|
176 |
Refueling port cap |
|
177 |
M6X25 bolt |
|
178 |
Flying rings |
|
179 |
M8x20 bolt |
|
180 |
Bracket weldment |
|
181 |
M8x16 bolt |
|
182 |
Muffler weldment |
|
183 |
Muffler guard cover |
|
184 |
M6x12 bolt |
|
185 |
M8 nut |
|
186 |
Exhaust pipe shim |
|
187 |
Exhaust pipe stud |
|
188 |
Cylinder head machining part |
|
189 |
Cylinder heod cover (II) |
|
190 |
Band (III) |
|
191 |
Fuel supply pipe |
|
192 |
Breather pipe |
|
193 |
Fuel vacuum pump part |
|
194 |
M5x16 bolt |
|
195 |
Crankshaft |
|
196 |
Governor supporting plate |
|
197 |
Alarm mounting bolt |
|
198 |
Nylon pipe clamp (II) |
