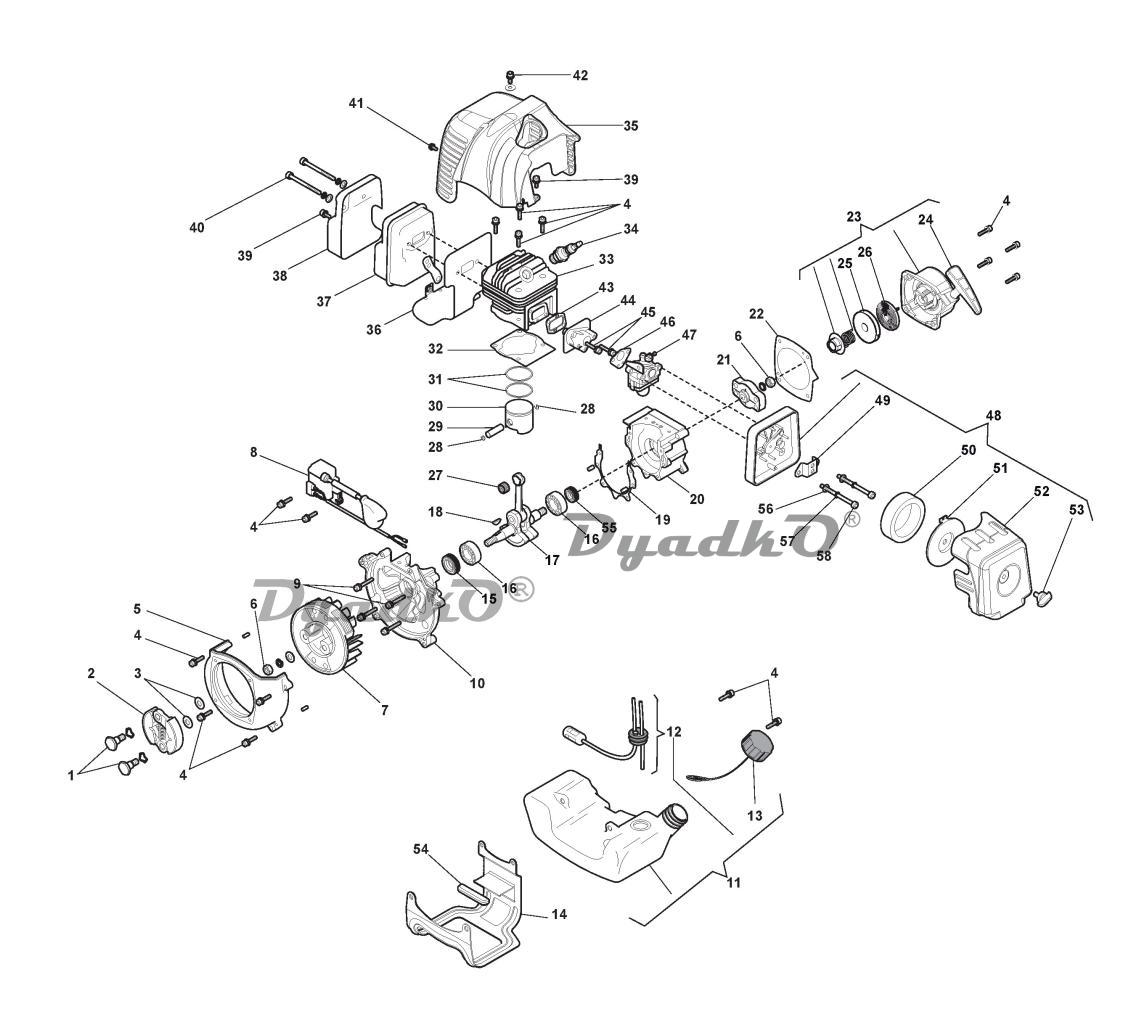

| 1 | Screw |
| 2 | Clutch Ass.Y |
| 3 | Washer |
| 4 | Screw |
| 5 | Transmission Support Case |
| 6 | Nut |
| 7 | Flywheel Ass.Y |
| 8 | Electronic Coil |
| 9 | Screw |
| 10 | Crank Case |
| 11 | Fuel Tank |
| 12 | Fuel Pipe Set |
| 13 | Fuel Cap Assy |
| 14 | Support |
| 15 | Seal Ring |
| 16 | Ball Bearing |
| 17 | Crankshaft |
| 18 | Flywheel Key |
| 19 | Crankcase Gasket |
| 20 | Crank Case |
| 21 | Starter Cup Ass.Y |
| 22 | Gasket |
| 23 | Starter Assy |
| 24 | Starter Handle |
| 25 | Starter Pulley |
| 26 | Starter Spring |
| 27 | Needle Bearing |
| 28 | Washer, Piston Pin |
| 29 | Piston Pin |
| 30 | Piston |
| 31 | Piston Ring |
| 32 | Cylinder Gasket |
| 33 | Cylinder |
| 34 | Spark Plug |
| 35 | Black Cylinder Cover |
| 36 | Muffler Gasket |
| 37 | Muffler |
| 38 | Muffler Guard |
| 39 | Screw |
| 40 | Screw |
| 41 | Screw |
| 42 | Screw |
| 43 | Intake Manifold Gasket |
| 44 | Intake Manifold |
| 45 | Screw |
| 46 | Intake-Carb Gasket |
| 47 | Carburetor |
| 48 | Air Filter Assy Yellow |
| 49 | Deflector |
| 50 | Air Filter |
| 51 | Plate |
| 52 | Air Cleaner Cover,Yellow |
| 53 | Knob |
| 54 | Rubber Gasket |
| 55 | Seal Ring |
| 56 | Washer |
| 57 | Washer |
| 58 | Screw |
