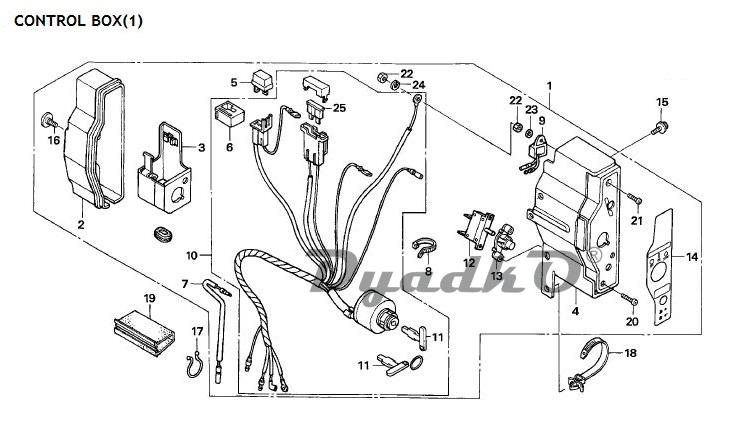

Схема (деталировка) бензиновые двигатели с горизонтальным валом HONDA GX270 UT БЛОК УПРАВЛЕНИЯ (1). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	BOX ASSY., CONTROL (EXP-ALERT) R280 POWER RED
2	CASE, CONTROL
3	BRACKET, CASE MOUNTING
4	PANEL COMP., CONTROL R280 POWER RED
5	RECTIFIER ASSY., SILICON (SHINDENGEN)
6	SUSPENSION, COUPLER
7	SUB HARNESS
8	BAND
9	ALERT UNIT, OIL
10	SWITCH ASSY., COMBINATION
11	KEY COMP.
12	PROTECTOR, CIRCUIT (1.0A)
13	LENS ASSY., PROTECTOR
14	MARK, CONTROL BOX (EXTERNAL)
15	BOLT, FLANGE, 6X12CCT200)
16	SCREW, SPECIAL, 6X12
17	CLIP, PURSE LOCK
18	STRAP, CABLE, 118MM(BLACK)
19	TUBE, FASTENER, 30MM
20	SCREW, PAN, 3X12
21	SCREW, PAN, 4X12
22	NUT, HEX., 4MM
23	WASHER, PLAIN, 4MM
24	WASHER, SPRING, 4MM
25	FUSE, BLADE (5A)
