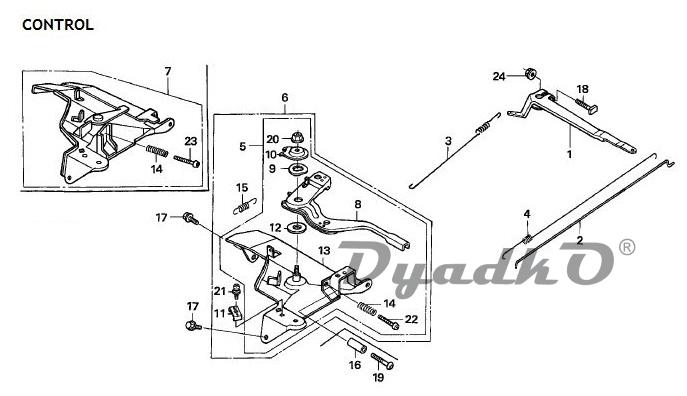

Схема HONDA GX270 UT УПРАВЛЕНИЕ
1
ARM, GOVERNOR
2
ROD, GOVERNOR
3
SPRING, GOVERNOR
4
SPRING, THROTTLE RETURN
5
CONTROL ASSY.
6
CONTROL ASSY. (REMOTE)
7
CONTROL ASSY.
8
LEVER, CONTROL
9
SPRING, LEVER
10
WASHER, CONTROL LEVER
11
HOLDER, CABLE
12
SPACER, CONTROL LEVER
13
BASE COMP., CONTROL
14
SPRING, CONTROL ADJUSTING
15
SPRING, CABLE RETURN
16
COLLAR, STOPPER
17
BOLT, FLANGE, 6X12CCT200)
18
BOLT, GOVERNOR ARM
19
SCREW, RECESSED, 5X25
20
NUT, SELF-LOCK, 6MM
21
SCREW, PAN, 5X16
22
SCREW, PAN, 5X28
23
SCREW, PAN, 5X35
24
NUT, FLANGE, 6MM
