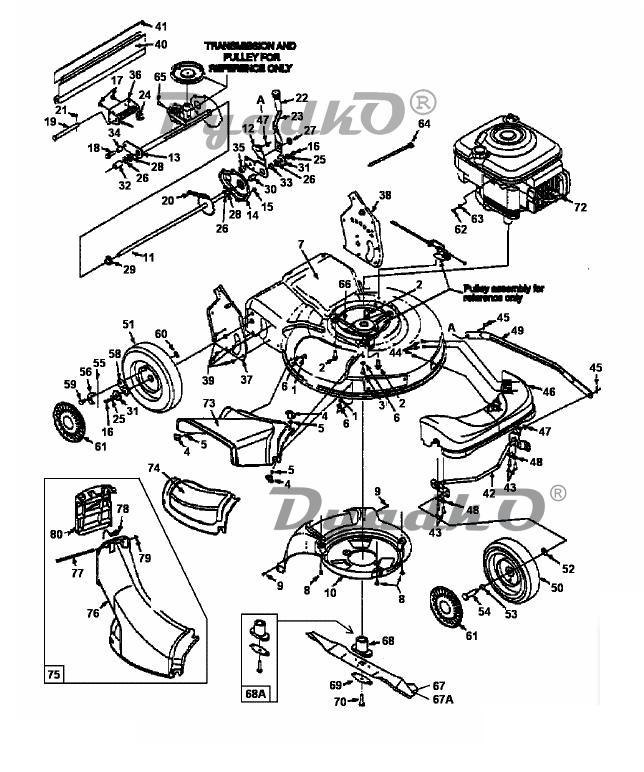

Схема YARD-MAN YM 6021 M (1998) Корпус

1 BOLT:CRG:1/4-20:0.62:GR2:STD; FINISH:MTD SPEC-100015;
2 SCR:TT:SEMS:3/8-16:1.00:HXLWSH; FINISH:GEOMET XL;
3 BOLT:CRG:1/4-20:0.75:GR5:STD; FINISH:MTD SPEC-100015;
4 WING NUT; FARBE:SCHWARZ 912-0397;
5 BUSHING; ;
6 WASH:FLAT:0.339 X 0.640 X0.033; FINISH:MTD SPEC-100015;
7 DECK 21"; 782-0046-0665;
8 SCREW:TT:1/4-20:0.375:HXINDWSH; FINISH:MTD SPEC-100016;
9 SCR:HL:12-16:0.750:TRUSPHI; FINISH:SPEC-100016 TYPE 1;
10 GUARD ASSY-BELT; 731-1828;
11 REAR AXLE ASSY.; 638-0012;
12 ADJUSTING ARM; 682-0531-0637;
13 AXLE ASM:TRANS:20/6 RATIO; 682-7526-0637;
14 CVR ASM:CHAIN:20/6 RATIO; 682-7528-0637;
15 SCREW:TT:1/4-20:0.375:HXINDWSH; FINISH:MTD SPEC-100016;
16 HHCS:1/4-20:0.62:GR5:STD; FINISH:SPEC-100015;
17 SCR:AB:1/4-14:.625:HXINDWSH; FINISH:MTD STD 701-01002;
18 SCR:TT:3/8-16:1.25:HXINDWSH; FINISH:SPEC-100016 TYPE 1;
19 PIN:CLV:0.500X4.292X0.135; FINISH:MTD SPEC-100015;
20 CHAIN:ENDLS:#48:.500P X 24L; 713-0453 / 913-0453;
21 PIN:COT:SPLIT:1/8X0.75; FINISH:MTD SPEC-100015;
22 GRIP: .5 ID x 3.45; FINISH: SCHWARZ;
23 Spring; 732-0803;
24 SPRING,EXT.1"; 732-0832 *;
25 WASH:BLVL:0.260X0.755X0.062; FINISH:MTD SPEC-100016;
26 WASH:THRST:.508x1.000x.020; FINISH:SIEHE ZG. 936-0369;
27 NUT-SHLD; 738-0529/938-0529;
28 BRG:FLG:HEX:.506 IDX .590LG; 741-0324;
29 BEARING-HEX FLANGE; 741-0522;
30 PIVOT BUSHING; 741-0978;
31 RATCHET WHEEL; 748-0318;
32 SPCR:.550IDx.750ODx1.125; 1.125 FINISH:GLANZVERZINKT;
33 SPACER; 750-0515;
34 SPCR: .385 X.625 X.700; FINISH:VERZINKT;
35 SPACER-PULLEY; 750-1056 / 950-1056;
36 SPRING BRACKET; 782-0568-0637;
37 HANDLE BRKT ASSY RH; 682-3052-0637/-0662;
38 HANDLE BRACKET ASSY. LEFT; 682-3053-0637/-0662;
39 SCR:AB:1/4-14:0.500:TRUSTRXI; FINISH:701-01002 910-1348;
40 TRSHD:MWR:4.30 X 17.25 LG; 731-1901 RB A!!;
41 TRAIL SHIELD WIRE; 732-0842;
42 FRONT AXLE ASSY.; 611-0064-0637/GIBT`S NUR -0637;
43 SCR:HL:1/4-15:1.00:HXINDWSH; FINISH:SPEC-100016 TYPE 1;
44 SCR:HL:5/16-14:.750:TRUSPHI; 701-01002 910-1242;
45 PIN:COT:.072 DIA x 1.13 LG; FINISH:PHOS AND OIL;
46 FRONT AXLE COVER; 931-1829;
47 WASH:SPR:.390 x.750 x.010; FINISH:701-01001 936-0286;
48 BUSH:BLOCK:.505 DIA x.62; FINISH:KUNSTSTOFF SCHWARZ;
49 TIE ROD ASSY.; 782-0565-0637/GIBT¨S NUR -0637;
50 WHL:COMPL:8.0X2.0 LINK YELL; LINK YELL/734-1818;
51 WHL:COMPL:9X2 LINK YELL SLEEV; ;
52 WASH:BLVL:0.375X0.880X0.060; FINISH:MTD SPEC-100016;
53 WASH:WAVE:0.508X0.760X0.017:HD; FINISH:MTD SPEC-100016;
54 SCR:SHLDR:0.498X1.445:3/8-16; FINISH:GM6035M CODE A;
55 SPR:RTCHT:PLASTIC; 10622B;
56 PAWL RH; 748-0381 (LINKS 748-0188B);
57 PAWL LH; 748-0188B (RECHTS=748-0381);
58 BEARING PLATE; 16855;
59 SCR:SHLDR:0.342 X 0.282:1/4-20; FINISH:GM4435M CODE A;
60 NUT:WELD:TOP-LOCK TAB:1/4-20; FINISH:PLAIN;
61 HUBCP:WHL:RADIAL SPOKE YELLOW; 731-1426;
62 SCR:T:#10-32:0.625:HXINDWSH; FINISH:MTD STD 701-01002;
63 CLAMP:CASNG:B&S THROTTLE; FINISH:VERZINKT;
64 TIE:CBL:0.05X0.18X7.56:50LB; MATERIAL:NYLON-SCHWARZ;
65 SCREW TT:5/16-18:0.625HXINDWSH; FINISH:MTD SPEC-701-01006;
66 V-BELT; 754-0460/954-0460 *;
67 BLADE 21" MULCHING W/STAR; FINISH:SIEHE ZG.;
67A BLADE; ;
68 ADAP:BLADE:#6x2.15 w/STAR; W/STAR;
68A KIT-BLADE ADAPTER; ET-SET;
69 BLADE BELL SUPPORT; ;
70 SCREW HHCS:3/8-24:2.50:GR8:SPE; FINISH:PHOSPHATE & OIL;
72 INSULATOR-SPARK PLUG; B&S-Nr. 066538;
73 CHUT:DIS:SIDE,21" CONV; ;
74 EJECTION FLAP; 731-1833 / 931-1833;
75 CHUTE; 631-0066/931-0066;
76 CHUTE; ;
77 ROD:PVT:CHUTE DOOR; ;
78 SPRING-TORSION; ;
79 CAP; FINISH:;
80 EJECTION FLAP; ;
