CC 917 AE (13HN98AE603) 2016

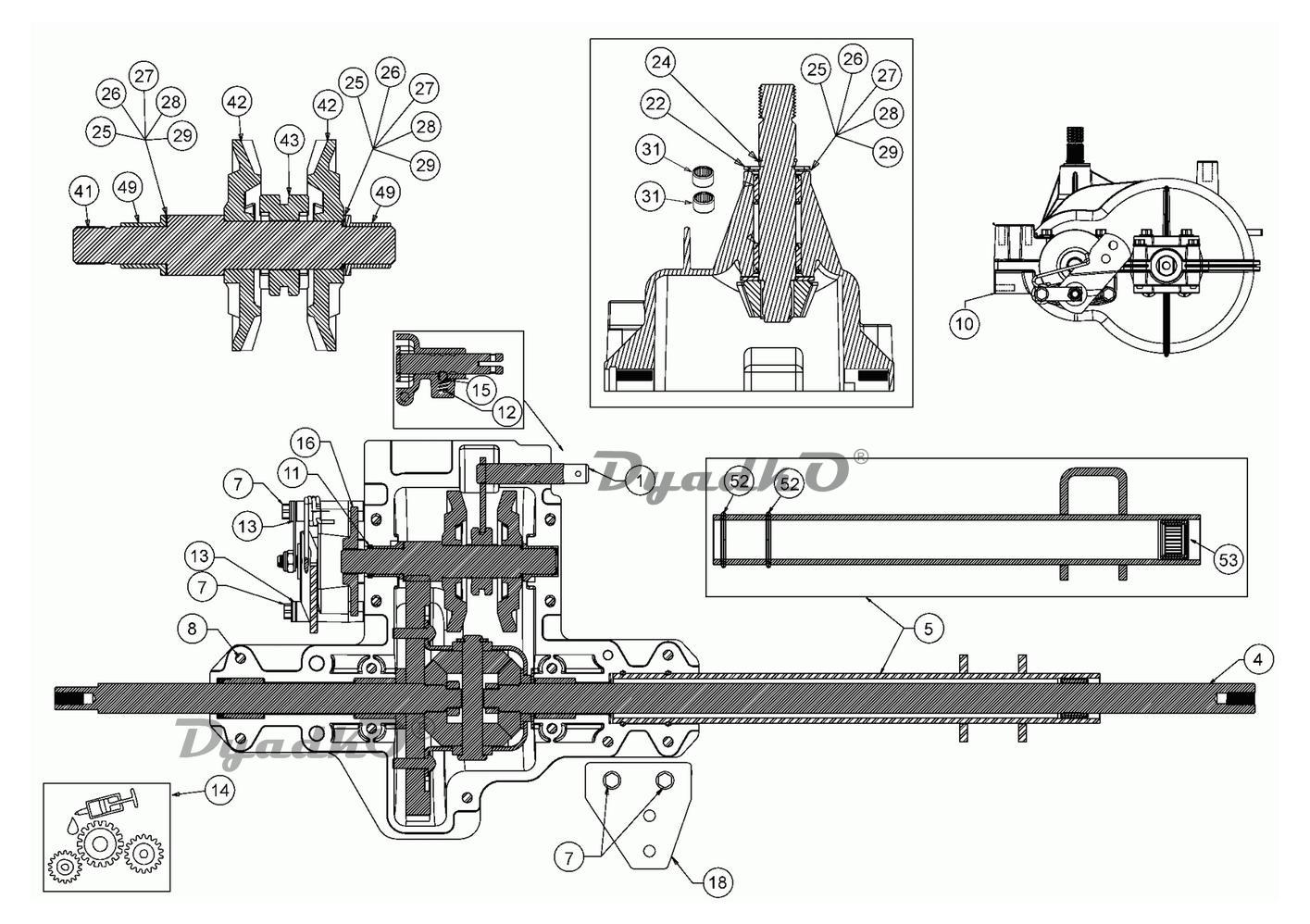

Схема CUB CADET CC 917 AE (13HN98AE603) 2016 Gearbox 618-04331A
1
SHF ASM:DETENT
4
__________
5
TUBE ASM:ORING & BRG
7
SCREW:TT:1/4-20:2.375:HXINDWSH
8
SCREW:TT:1/4-20:1.625:HXINDWSH
10
HSG:LWR
11
SEAL:.625 .812X.094
12
COMPRESSION SPRING
13
WASHER:FLAT:.281 x.500 x.063
14
GEAR BOX GREASE (400G CAN)
15
BALL:DETENT:.250 DIA
16
BRAKE DISC
18
BRKT:MT:HITCH
22
RING:E-TYPE:.750
24
Circlip
25
WASH:SHIM:.625x1.000x.030:HD
26
WASH:SHIM:.634x1.000x.040:HD
27
WASHER:SHIM:.630x1.000x.020:HD
28
WASHER:FL:.632X1.000X.035:HD
29
WASHER:SHIM:.632x1.000x.025:HD
31
BEARING-NEEDLE:.625X.813X.495
41
SHF:DRV:LH BRAKE
42
GEAR:BEVEL:42T
43
COLR:CLU
49
FLANGE BEARING
52
O-RING:1.174 ID X .103 THK
53
BRG:NDL:.7500 X 1.000 X .68
