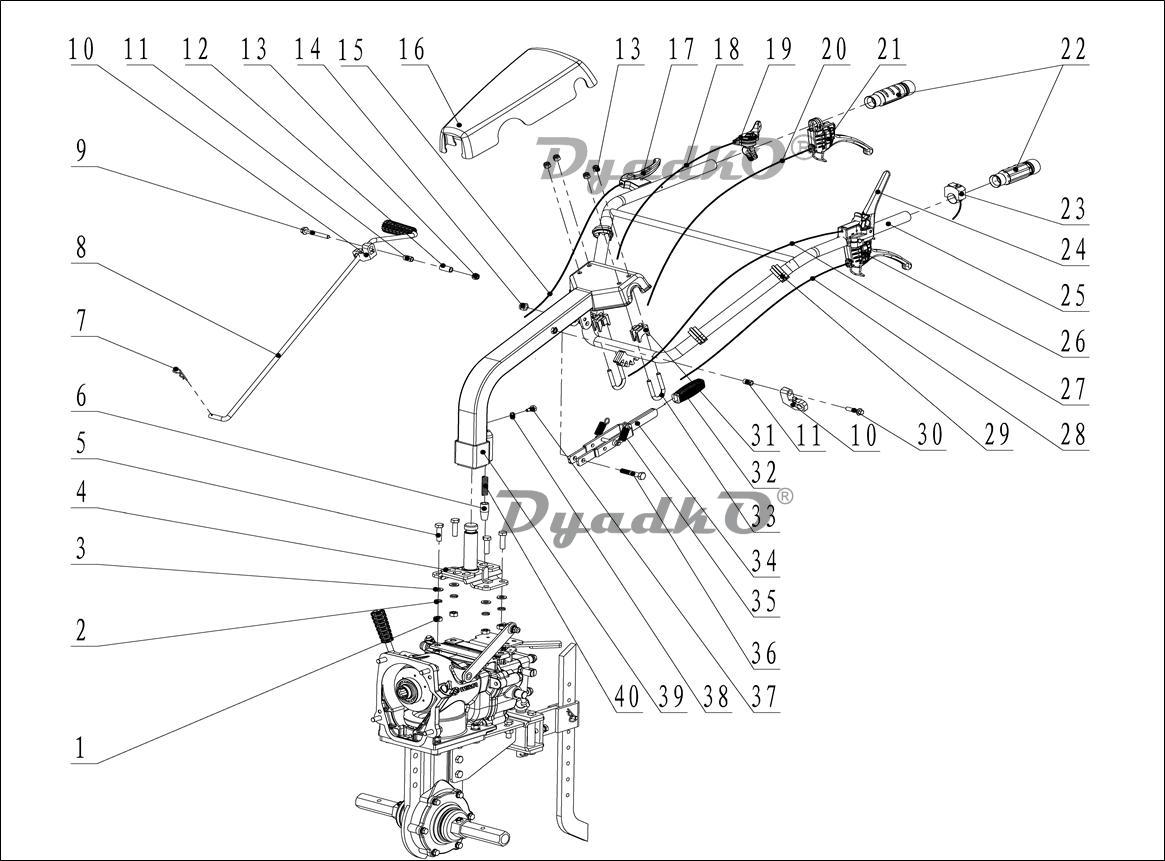

Схема (деталировка) культиваторы и мотоблоки бензиновые WEIMA WM1100FE MF handle bar comp (Usually Closed clutch). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Nut M10; ;
2	Spring washer 10; ;
3	Gasket 10; ;
4	Handle buttom plate; ;
5	Bolt M10X35; ;
6	Limit pin; ;
7	Clip B; ;
8	1100A-6MF shift gear rod; ;
9	Bolt M8X65; ;
10	1100A-6 Shift gear rod limit block; ;
11	Sleeve 8×11×19.5; ;
12	Limit block sheath; ;
13	Locked nut M8; ;
14	Locked nut M10; ;
15	Turning cable; ;
16	Handle cover; ;
17	Turning grip; ;
18	Oil cable; 1100A/B-6;
18	Oil cable; 1100C/D-6;
19	Oil switch; ;
20	II reverse cable; ;
21	II grip with lock; ;
22	φ25 handle rubber; ;
23	Flameout switch (with cable); 1100C/D-6;
24	Diesel emergency stop switch; 1100A/B-6;
25	Handle frame; ;
26	II clutch switch; ;
27	Flameout cable; 1100A/B-6;
28	1100A-6MF usually closed clutch cable; ;
29	Cable clip; ;
30	Bolt M8X35; ;
31	Handle support piece; ;
32	Height adjustment handle rubber; ;
33	U type bolt; ;
34	Height adjustment handle; ;
35	Draw spring; ;
36	Bolt M10X55; ;
37	Locked bolt; ;
38	Spring washer 8; ;
39	Handle stand pipe; ;
40	Pressue spring; ;
