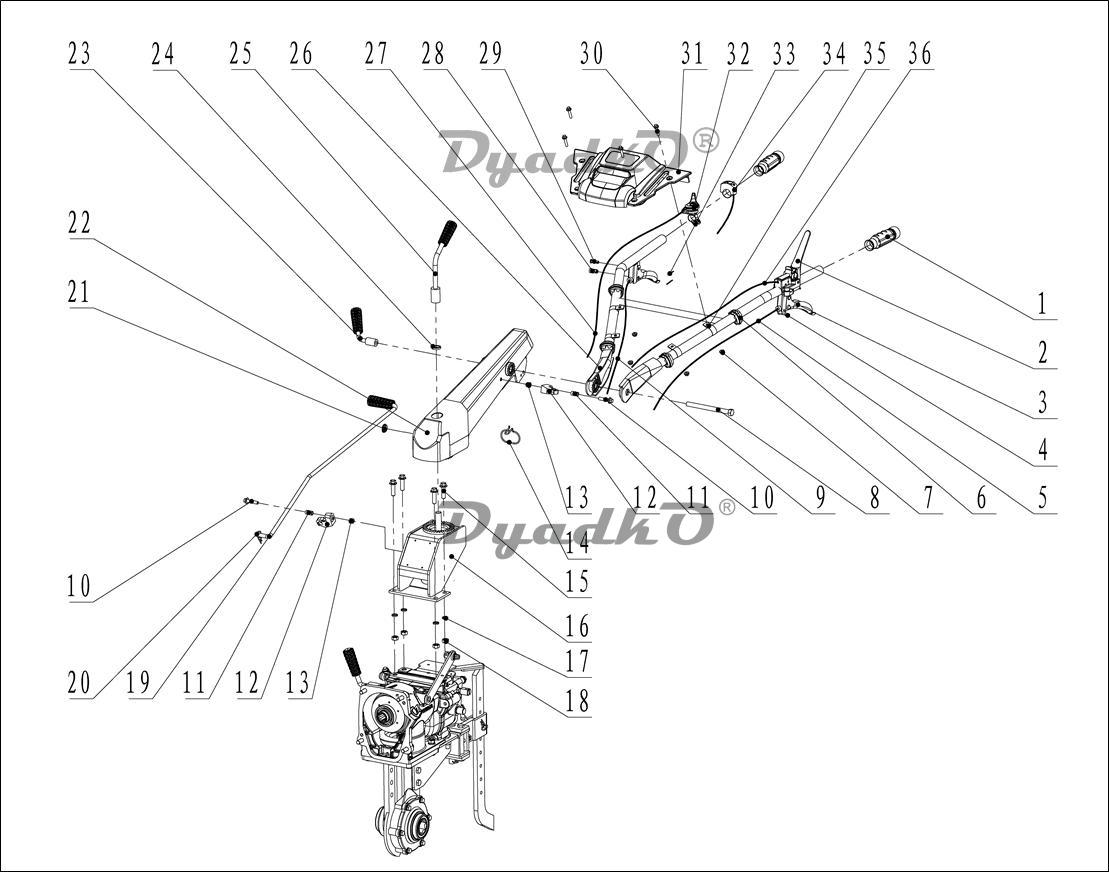

Схема (деталировка) культиваторы и мотоблоки бензиновые WEIMA WM1100FE KM handle bar comp (Usually closed clutch). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	φ25 handle rubber; ;
2	Diesel emergency stop switch; 1100A/B-6;
3	Reverse/clutch handle; ;
4	Clutch clip; ;
5	1100A-6 usually closed clutch cable; ;
6	Cable clip; ;
7	Nut M6; ;
8	Bolt M12×140; ;
9	1100A-6 reverse cable; ;
10	Bolt M8×35; ;
11	Sleeve 8×11×19.5; ;
12	1100A-6 Shift gear rod limit block; ;
13	Locked nut M8; ;
14	Cable circle; ;
15	Bolt M10×35; ;
16	1100A-6KM buttom seat; ;
17	Spring washer 10; ;
18	Nut M10; ;
19	Shift gear rod; ;
20	Clip B; ;
21	Plug; ;
22	1100A-6KM handle seat; ;
23	Locked grip; ;
24	Spring washer 16; ;
25	Locked turning handel; ;
26	1100A-6KM handle frame; ;
27	Oil cable; 1100A/B-6;
27	Oil cable; 1100C/D-6;
28	Cable tie-in; ;
29	Pin 7×20; ;
30	Bolt M6×30; ;
31	Tool box; ;
32	Oil switch; ;
33	Split pin 2×28; ;
34	Fameout switch(With cable); 1100C/D-6;
35	Handle fram connection piece; ;
36	Fameout cable; 1100A/B-6;
