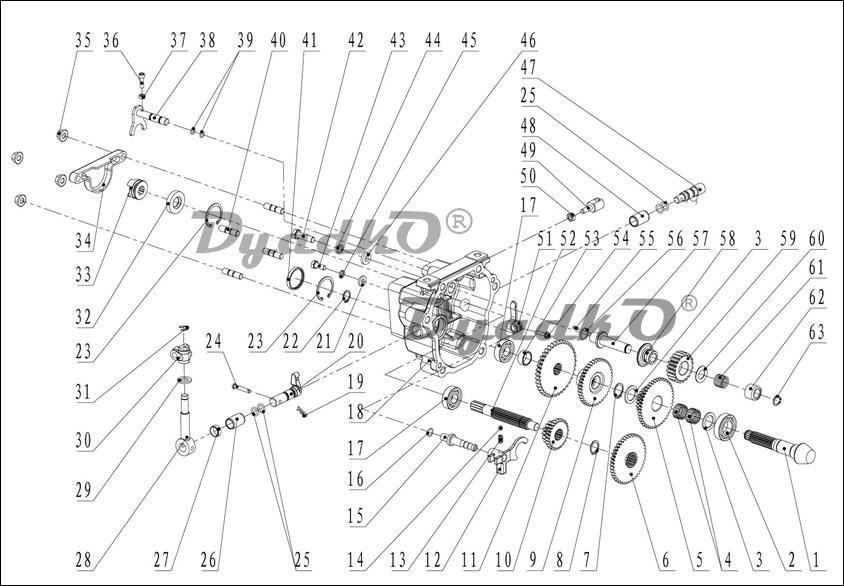

Схема (деталировка) культиваторы и мотоблоки бензиновые WEIMA WM1100FE Transmission back case comp. Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Vice shaft
2	Ball bearing 6005
3	Adjustment washer 22×32×2
4	Needle bearing KT22×26×13
5	Vice shaft double teeth gear A
6	Main shaft gear B
7	Spring washer 22
8	Spring washer 20
9	Vice shaft fast gear
10	Main shaft double teeth gear
11	Vice shaft slow gear
12	Shift gear fork
13	Shift gear spring
14	φ8 steel ball
15	Shift gear fork shaft
16	O-ring 11.8×1.8
17	Ball bearing 6203
18	Back case cover
19	Circlip F
20	Shif gear rocker
21	Gasket 8×18×3
22	Spring washer 17
23	Ring for hole 40
24	Pin 6×32
25	O-ring 11.2×2.65
26	Bush 16×20×30
27	Restrict sheath
28	Shift gear sheath
29	Gasket 12
30	PTO gemel B
31	Split washer 9
32	Lip seal TC17×40×8
33	Output slutch push dog
34	Plastic clutch cover
35	Nut M10
36	Bolt M6×20
37	Nut M6
38	Output fork
39	O-rng 1.8×8
40	Stud bolt bm=1.5d M10×25
41	Oil plug 40×6
42	Bolt M10×25
43	Bolt M8×20
44	Spring washer 10
45	Spring washer 8
46	Gasket 10.5×22×4
47	Reverse gear fork shaft
48	Fork sheath
49	Reverse cable seat
50	Bolt M8
51	Reverse fork
52	Main shaft
53	Sheath 20.5×25×11.5
54	Bolt M5×25
55	Cylindrical pin 5×10
56	O-ring 1.8×18
57	Reverse shaft
58	Reverse push plate
59	Reverse gear
60	Wear washer 16.5×30×1
61	Reverse spring
62	Reverse restrict sheath
63	Spring washer 15
