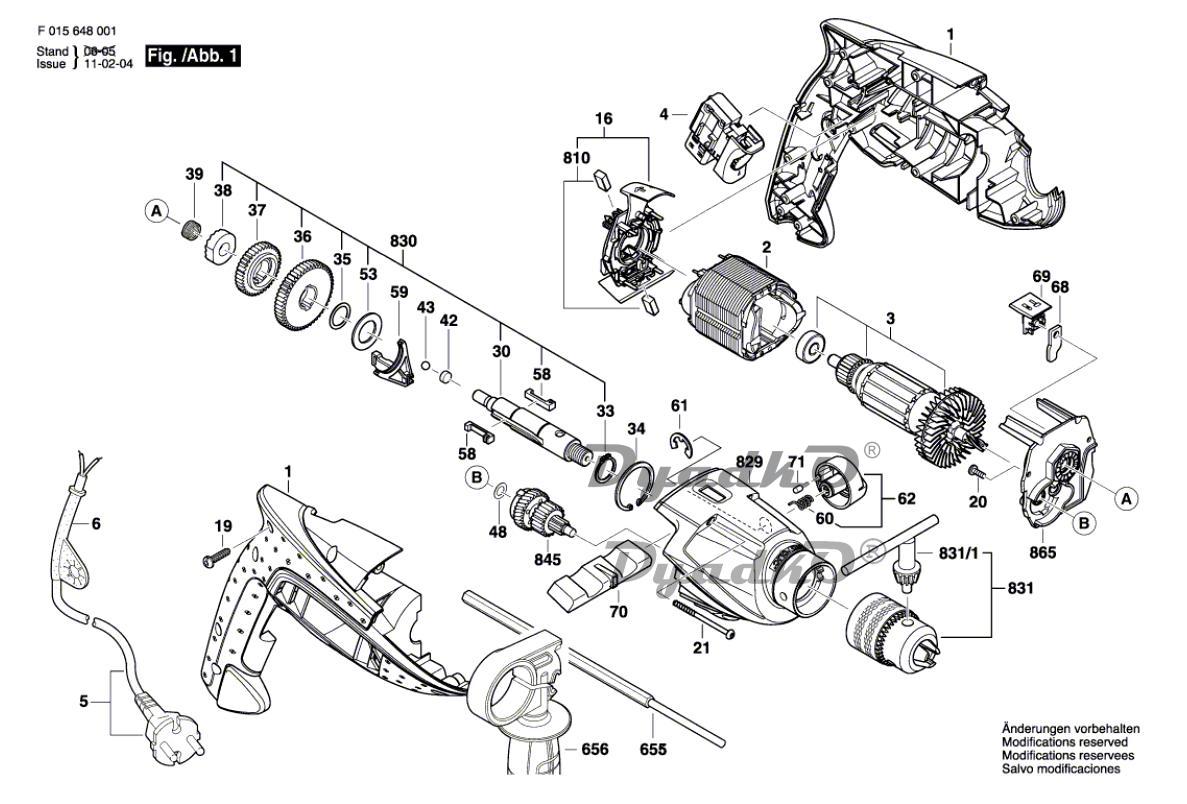

Схема (деталировка) дрели SKIL 6480 (F015648001). Подбор по модели, низкие цены в интернет-магазине Дядько.ру с доставкой по Москве и всей России

1	Housing; ;
2	Field 230V; ;
3	Armature 230V; ;
4	Switch; ;
5	Power supply cord EU 4,15m 2 x 1,00mm H05 VV-F; ;
6	Grommet Ø6,2-Ø6,9x90 MM; ;
16	Brush Holder; ;
19	Torx Oval-Head Screw T20-8x19 MM; ;
20	Screw; ;
21	Thread-forming tap. Screw; ;
30	Drilling Spindle; ;
33	Spring retaining ring DIN 471 17x1 MM; ;
34	Spring retaining ring DIN 472 35x1,5 MM; ;
35	Shim 0,5 MM; ;
36	Cylindrical Gear; ;
37	Cylindrical Gear; ;
38	Catch Disk; ;
39	Compression Spring; ;
42	Shim washer 1,7 MM; ;
43	Ball DIN 5401-5,5MM-III-ST; ;
48	Shim 0,3 MM; ;
53	Retaining Washer; ;
58	Flat Key; ;
59	Switching Arm; ;
60	Switch Spring; ;
61	Locking Washer; ;
62	Switch Button; ;
68	Guiding Plate; ;
69	Changeover Lever; ;
70	Change-Over Switch; ;
71	Ratchet Cap; ;
655	Depth-Gauge; ;
656	Auxiliary Handle; ;
810	Carbon-Brush Set; ;
829	Gear Housing; ;
830	Drilling Spindle; ;
831	Chuck Ø1,5-13 MM, 1/2"; ;
831/1	Chuck Wrench SG2; ;
845	Toothed Shaft; ;
865	bearing plate; ;
