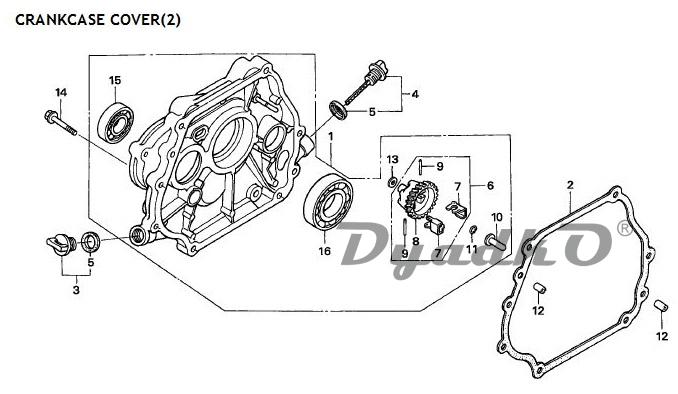

Схема HONDA GX270 UT КРЫШКА КАРТЕРА (2)
1
COVER ASSY., CRANKCASE
2
PACKING, CASE COVER
3
CAP ASSY., OIL FILLER
4
CAP ASSY., OIL FILLER
5
PACKING, OIL FILLER CAP
6
GOVERNOR ASSY.
7
WEIGHT, GOVERNOR
8
HOLDER, GOVERNOR WEIGHT
9
PIN, GOVERNOR WEIGHT
10
SLIDER, GOVERNOR
11
CLIP, GOVERNOR HOLDER
12
DOWEL PIN, 8X12
13
WASHER, PLAIN, 6MM
14
BOLT, FLANGE, 8X35
15
BEARING, RADIAL BALL, 6204
16
BEARING, RADIAL BALL, 6206
