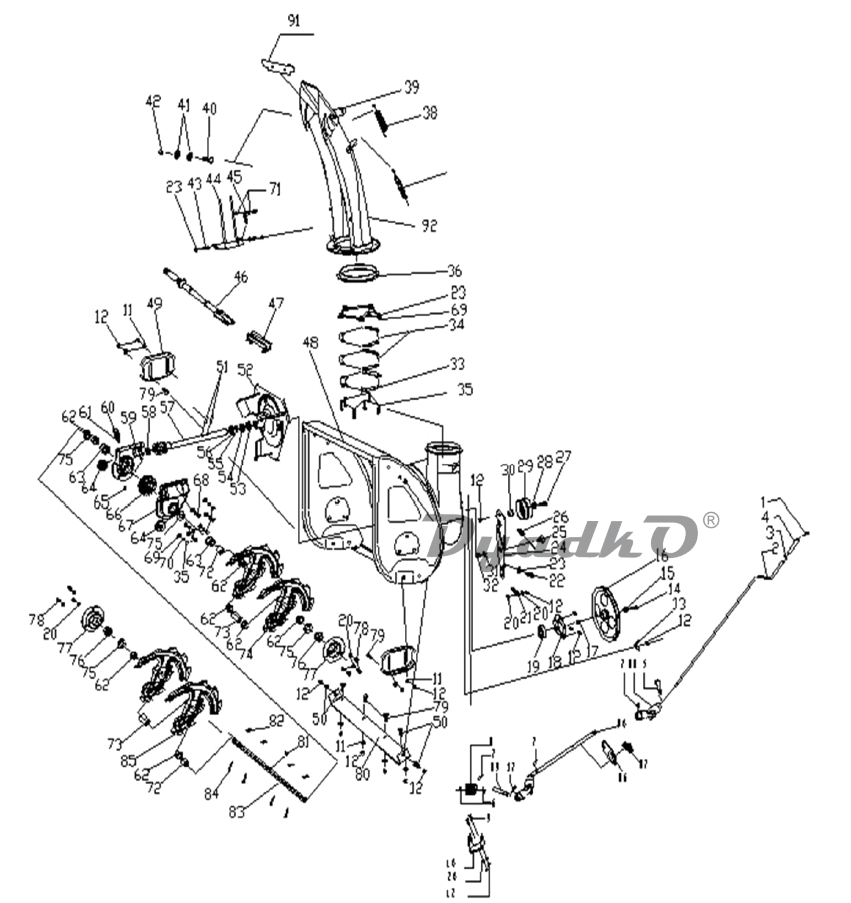

Схема MASTERYARD MX8524LE Шнек, Снегоотбрасыватель

1 Hexagonal bolt
2 SJ rocker sleeve
3 Flat washer
4 Discharge chute rocker
6 Helical tooth bracket gasket ring
7 Coiled spring pins
8 Helical gear-2012
9 Half round head screw
10 11hp new helical tooth bracket- 2012
11 Flat washer
12 Hexagonal self-locking nut
13 Belt plate
14 Hexagonal flange bolt
15 Flat washer
16 SJ large belt pulley
17 C type key
18 SJ round bottom cover
19 Bearing
20 Flat washer
21 Spring 5
22 Tension screw
23 Hexagonal self-locking nut
24 SJ tension plate
25 SJ hexagonal bolt 1
26 Auger cable
27 Hexagonal bolt
28 SJ sleeve
29 SJ large tension wheel 2 (bearing)
30 SJ sleeve
31 Flat washer
32 Hexagonal self-locking nut
33 Chute gasket
34 Chute gasket
35 Hexagonal bolt
36 Chute base plastic ring
37 Pin
38 Chute spring
39 Chute cap assembly 2012
40 Cross head screws
41 Chute nylon gasket
42 Hexagonal self-locking nut
43 Hexagonal bolt
44 SJ bend rod kit
45 Spring 4
46 Plastic shovel
47 Shovel seat
48 SJ box
49 SJ skid
50 Half round head screw
51 Coiled spring pins
52 SJ fan
53 Oil seal
54 Single direction thrust ball bearing
55 Spacer ring
56 Deep groove ball bearing
57 SJ drive worm gear shaft
58 Deep groove ball bearing
59 SJ bottom base
60 Grease nipple
61 Corrugated gasket
62 SJ drive shaft sleeve
63 SJ output shaft sleeve
64 Oil seal
65 Cross head screws
66 SJ worm wheel
67 SJ upper base
68 Hexagonal bolt
69 Flat washer
70 Spring washer
71 Hexagonal flange bolt
72 Output shaft sleeve 24-2
73 Output shaft sleeve 24-1
74 Right auger
75 Flat washer
76 SJ bushing
77 SJ bearing cover
78 Hexagonal bolt
79 Half round head screw
80 SJ long plate
81 Semicircle key
82 Pin
84 Output shaft pin
85 Left auger
86 Chute rocker fixed frame
87 Helical tooth rocker gasket
88 Universal coupling
89 Chute helical tooth rocker
90 Chute rocker 1
91 Chute rubber gasket
92 11hp 12 type chute assembly
-83 Output shaft 24
